Stress-Life Method

The stress-life method relies on test specimens subjected to controlled cycling between two stress levels, known as constant amplitude loading.

• Based on empirical data as opposed to theory
• Least accurate
• Traditional, easy to implement for wide range of design applications
• Adequately assess high-cycle fatigue applications

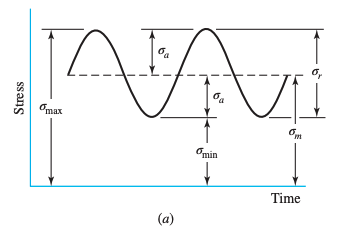

Constant Amplitude Loading

The constant amplitude stress situation is characterized by the following:

• ${\sigma }_{\text{min}}$ is minimum stress
• ${\sigma }_{\text{max}}$ is maximum stress
• ${\sigma }_m$ is mean stress, or midrange stress
• ${\sigma }_a$ is alternating stress, or stress amplitude
• ${\sigma }_r$ is stress range

The following relations are evident:

$$\begin{array}{r}{\sigma }_a=\left|\frac{{\sigma }_{\text{max}}-{\sigma }_{\text{min}}}{2}\right|\\ {\sigma }_m=\frac{{\sigma }_{\text{max}}+{\sigma }_{\text{min}}}{2}\end{array}$$

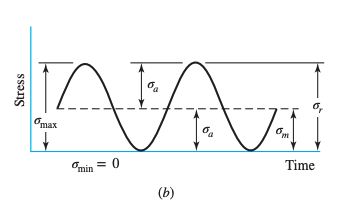

Repeated Stress

Repeated stress is a special case of constant amplitude loading, where the minimum stress is zero.

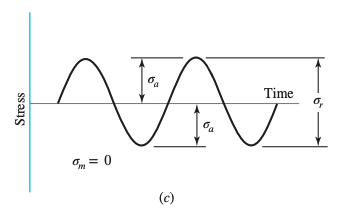

Completely Reversed Stress

Completely reversed stress is a special case of constant amplitude loading, where the mean stress is zero. Stress cycles between equal magnitudes of tension and compression. In this case, the alternating stress is denoted as ${\sigma }_{\text{ar}}$.

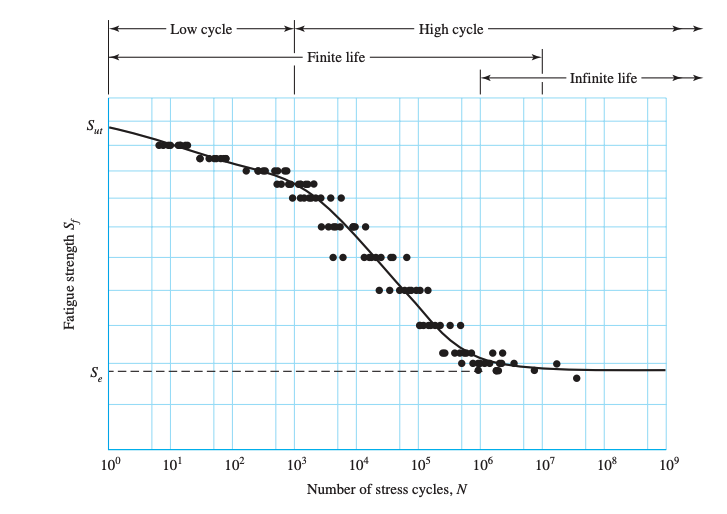

S-N Diagram

Also known as a Wöhler curve, or stress-life diagram, this is based on the rotating-beam test, where each revolution of the specimen causes a stress element on the surface to cycle between equal magnitudes of tension and compression, thus achieving completely reversed stress conditions. The plot of the completely reversed alternating stress verus life in cycles to failure is made on a semi-log or log-log scale.

Endurance Limit

The fatigue strength corresponding to the knee is called the endurance limit $S_e$, or the fatigue limit. This represents the maximum cyclic stress amplitude that a material can withstand for an infinite number of cycles without failing due to fatigue. Many materials, particularly nonferrous metals and plastics, do not exhibit an endurance limit. For materials without an endurance limit, the fatigue strength $S_f$ is reported at a specific number of cycles, commonly $N=5\times 10^8$.
