Graph Representation

In addition to the graph structure itself consisting of nodes and edges, information is typically associated with each node. For example, in a social network, each individual might be characterized by a fixed-length vector representing their interests. Sometimes, the edges also have information attached. For example, for a road network, each edges might be characterized by its length, number of lanes, frequency of accidents, and speed limit. The information at a node is stored in a node embedding, and the information at an edge stored in an edge embedding.

Formally, a graph consists of a set of $N$ nodes connected by a set of $E$ edges. The graph can be encoded by three matrices $\mathbf{A},\mathbf{X},\mathbf{E}$, representing the graph structure, node embeddings, and edge embeddings.

The graph structure is represented by the adjacency matrix $\mathbf{A}$. This is an $N\times N$ matrix where each entry $(m,n)$ is set to one if there is an edge between nodes $m$ and $n$ and zero otherwise. For undirected graphs, this matrix is always symmetric. For large sparse graphs, it can be stored as a list of connections $(m,n)$ to save memory.

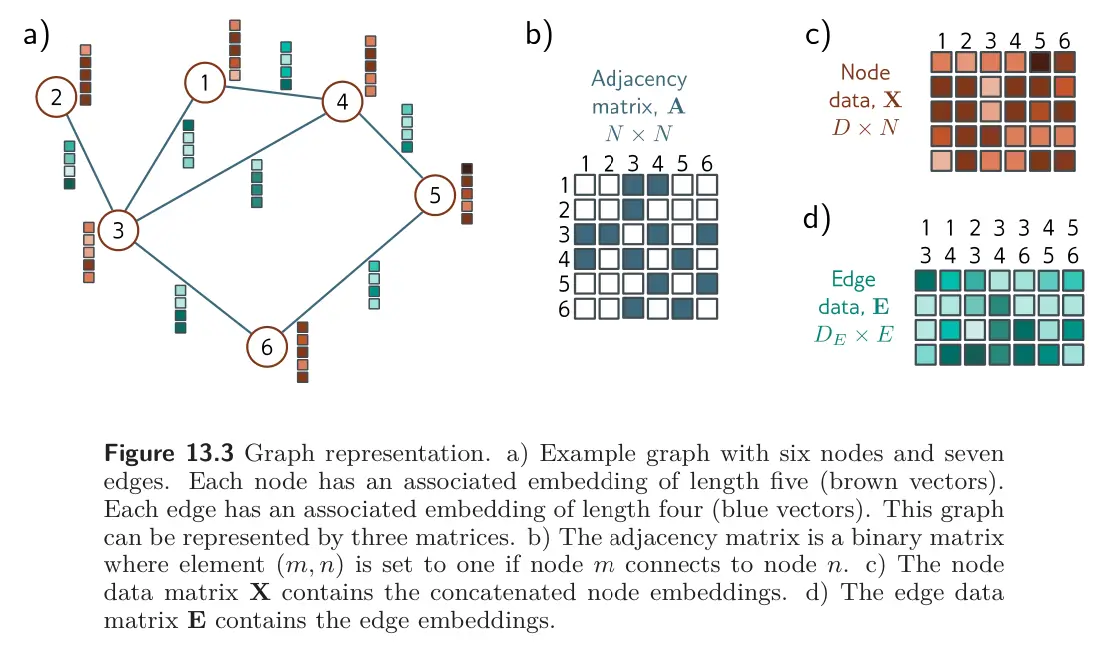

The $n$-th node has an associated node embedding $x^{(n)}$ of length $D$. These embeddings are concatenated and stored in the $D\times N$ node data matrix $\mathbf{X}$. Similarly, the $e$-th edge has an associated edge embedding $e^{(e)}$ of length $D_E$. These embeddings are collected into the $D_E\times E$ matrix $\mathbf{E}$.

Adjacency matrix properties

The adjacent matrix can be used to find the neighbors of a node using linear algebra.

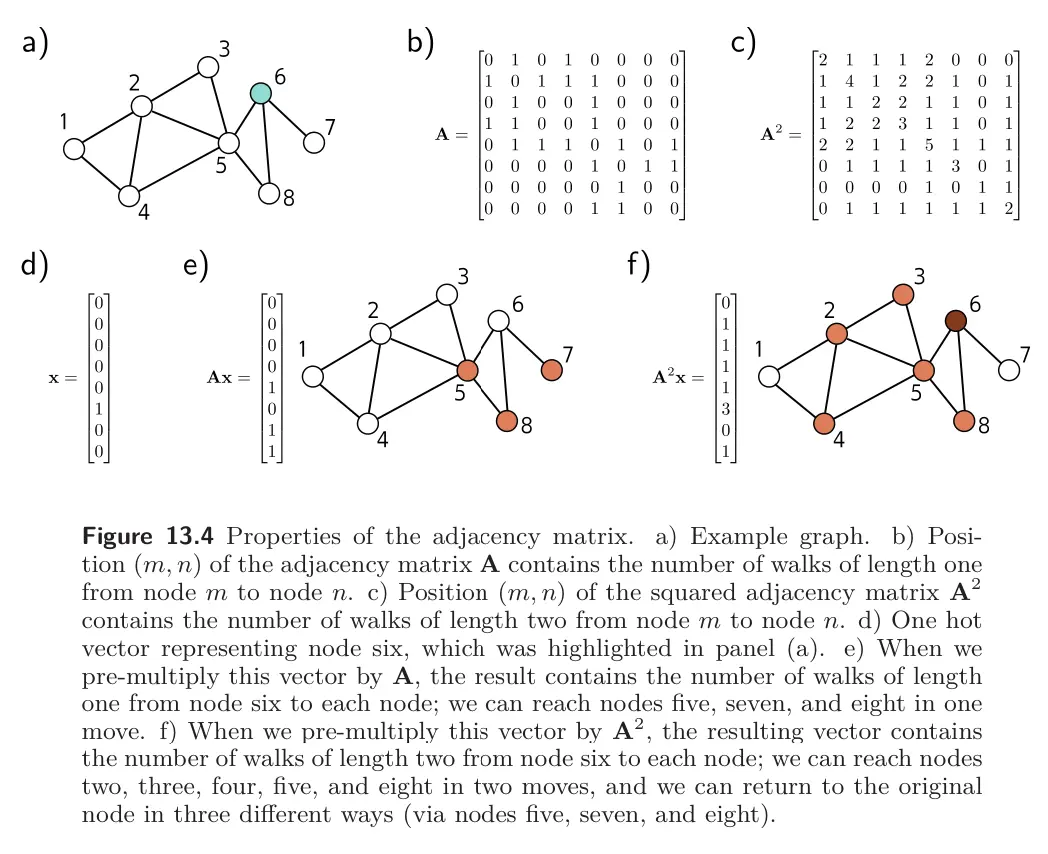

Consider encoding the $n$th node’s position as a one-hot column vector (a vector with only one non-zero entry at position $n$, which is set to one). Wen we pre-multiply this vector by the adjacency matrix, it extracts the $n$th column of the adjacency matrix and returns a vector with ones at the positions of the neighbors (all the places we can reach in a walk of length one from the $n$th node). If we repeat this procedure (pre-multiply by $A$ again), the resulting vector contains the number of walks of length two from node $n$ to every node.

In general, if we raise the adjacency matrix to the power of $L$, the entry at position $(m,n)$ of ${\mathbf{A}}^L$ contains the number of unique walks of length $L$ from node $m$ to node $n$. This is not the same as the number of unique paths since the walks include include routes that visit the same node more than once. Nonetheless, ${\mathbf{A}}^L$ still contains valuable information about the graph connectivity; a non-zero entry at position $(m,n)$ indicates that the distance from $m$ to $n$ must be less than or equal to $L$.

Permutation of node indices

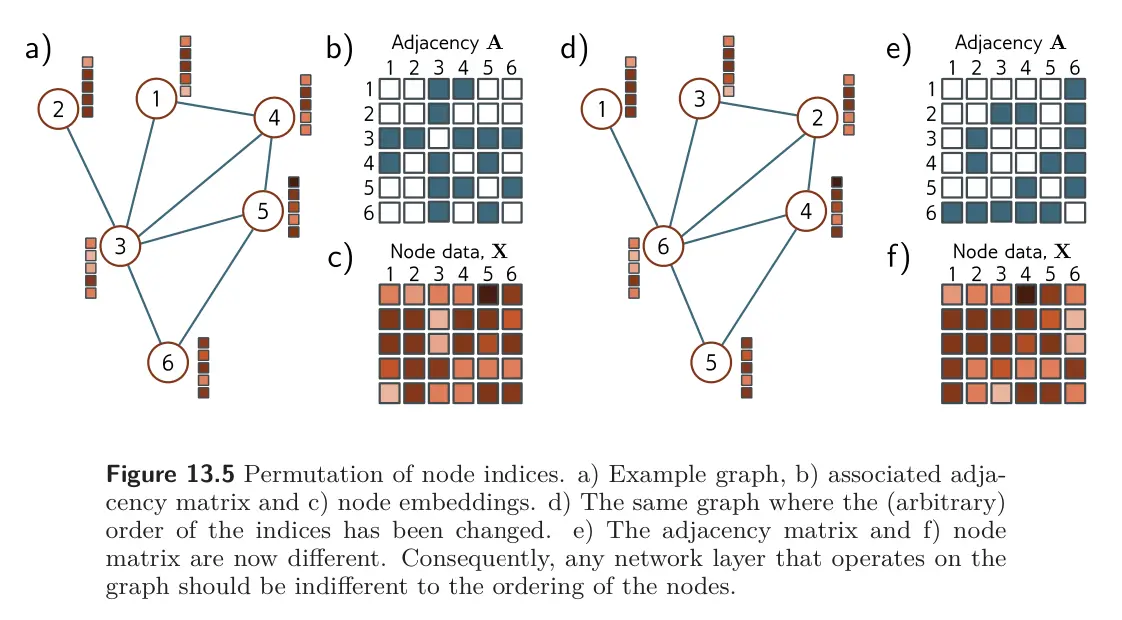

Node indexing in graphs is arbitrary; permuting the node indices results in a permutation of the columns of the node data matrix $\mathbf{X}$ and a permutation of both the rows and columns of the adjacency matrix $\mathbf{A}$. However, the underlying graph is unchanged; this is in contrast to images, where permuting the pixels creates a different images, and to text, where permuting the words creates a different sentence.

The operation of exchanging node indices can be expressed mathematically by a permutation matrix, $\mathbf{P}$. This is a matrix where exactly one entry in each row and column take the value one, and the remaining values are zero. When position $(m,n)$ of the permutation matrix is set to one, it indicates that node $m$ will become node $n$ after the permutation. To map from one indexing to another, we use the operations:

$$\begin{array}{rl}{\mathbf{X}}^{\prime }& =\mathbf{XP}\\ {\mathbf{A}}^{\prime }& ={\mathbf{P}}^T\mathbf{AP}\end{array}$$

where post-multiplying by $\mathbf{P}$ permutes the columns and pre-multiplying by ${\mathbf{P}}^T$ permutes the rows. It follows that any processing applied to the graph should also be indifferent to these permutations (permutation-invariant). Otherwise, the result will depend on the choice of node indices.
