Given two integer arrays preorder and inorder where preorder is the preorder traversal of a binary tree and inorder is the inorder traversal of the same tree, construct and return the binary tree.

Example:

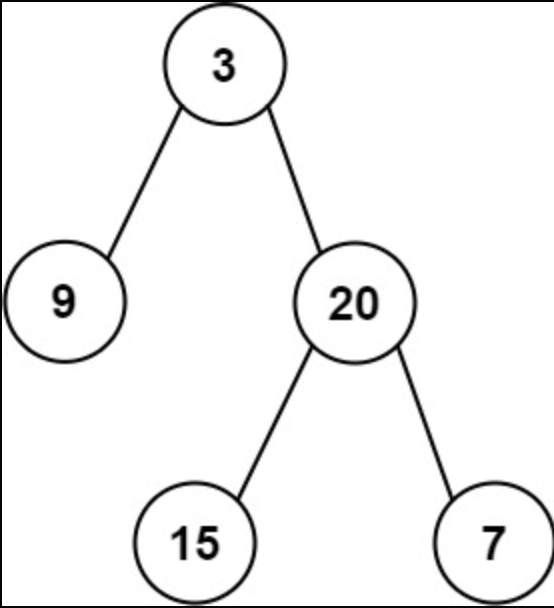

Input: preorder = [3, 9, 20, 15, 7], inorder = [9, 3, 15, 20, 7]
Output: [3,9,20,null,null,15,7]

Solution

There are two facts we can take advantage of to construct our tree.

  1. The first item in preorder will always be the root.
  2. If we find the root in inorder, the values to the left of it will belong to the left subtree and the values to the right of it will belong to the right subtree.

From the second fact, we can find the length of the left and right subtrees. Thus then tells us how to partition preorder correctly.

In the example, the root 3 is at position 1 in inorder, so we know that:

  • Left subarray has length 1 – 9
  • Right subarray has length 3 – 15, 20, 7

In preorder, we then know that the partition is 9 | 20, 15, 7. Then, we can recursively do what we just did on our subtrees; find root in pre-order, and then find the left and right subtrees in in-order. We will repeat this until we get to our base cases

We can take advantage of this and use a recursive approach to construct our tree.

# Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right

class Solution:
    def buildTree(self, preorder: List[int], inorder: List[int]) -> Optional[TreeNode]:

        if not preorder or not inorder:
            return

        # Identify root and its position in inorder
        root = TreeNode(preorder[0])
        mid = inorder.index(preorder[0])

        # Build left subtree
        root.left = self.buildTree(preorder[1:mid+1], inorder[:mid])
        # Build right subtree
        root.right = self.buildTree(preorder[mid+1:], inorder[mid + 1:])

        return root
  • Base case: no nodes left to traverse
  • We can find the root node by looking at the first order of a pre-order array
  • Find the position of root (saved as mid) by finding its index in the inorder array

The slice notation is tricky here.

For left subtree:

  • In preorder, we go from the index 1 (exclude 0 because it’s the current root) to mid. However, slice notation is exclusive for stopping, so we need to go to mid+1.
  • In inorder, we go from the start of the array up to mid but we exclude mid.

For right subtree:

  • In preorder, we want to start from first number after mid, since this means we’ve “cut out” the left subtree. This means we go from mid+1 to the end.
  • Same goes for inorder!
