Radiation

Radiation is the energy emitted by matter in the form of electromagnetic waves (or photons) as a result of the changes in the electronic configurations of the atoms or molecules. Unlike conduction and convection, the transfer of heat by radiation does not require the presence of an intervening medium. In fact, heat transfer by radiation is fastest (it occurs at the speed of light), and it suffers no attenuation in a vacuum. This is how the energy of the sun reaches the earth.

We are specifically interested in thermal radiation, which is the form of radiation emitted by bodies because of their temperature. It differs from other forms of electromagnetic radiation such as X-rays, gamma rays, microwaves, radio waves, and television waves that are not related to temperature. All bodies at a temperature above absolute zero emit thermal radiation.

Blackbody Radiation

The maximum rate of radiation that can be emitted from a surface at a thermodynamic temperature $T_s$ is given by the Stefan-Boltzmann law as

$${\dot{Q}}_{\text{emit, max}}^{\prime \prime }=\sigma T^4$$

where $\sigma =5.670\times 10^8\text{ W}/{\text{m}}^2\cdot {\text{K}}^4$ is the Stefan-Boltzmann constant.

The idealized surface that emits radiation at this maximum rate is called a blackbody, and the radiation emitted by a blackbody is called blackbody radiation.

Emissivity

The radiation emitted by all real surfaces is less than the radiation emitted by a blackbody at the same temperature and is expressed as

$${\dot{Q}}_{\text{emit}}^{\prime \prime }=ϵ\sigma T_s^4$$

where $ϵ$ is the emissivity of the surface. The property emissivity, whose value is in the range $0\le ϵ\le 1$, is a measure of how closely a surface approximates a blackbody for which $ϵ=1$.

Absorptivity

Another important radiation property of a surface is its absorptivity $\alpha$, which is the fraction of the radiation energy incident on a surface that is absorbed by the surface. Like emissivity, its value is in the range $0\le \alpha \le 1$. A blackbody absorbs all radiation incident on it. That is, a blackbody is a perfect absorber ($\alpha =1$) as well as a perfect emitter.

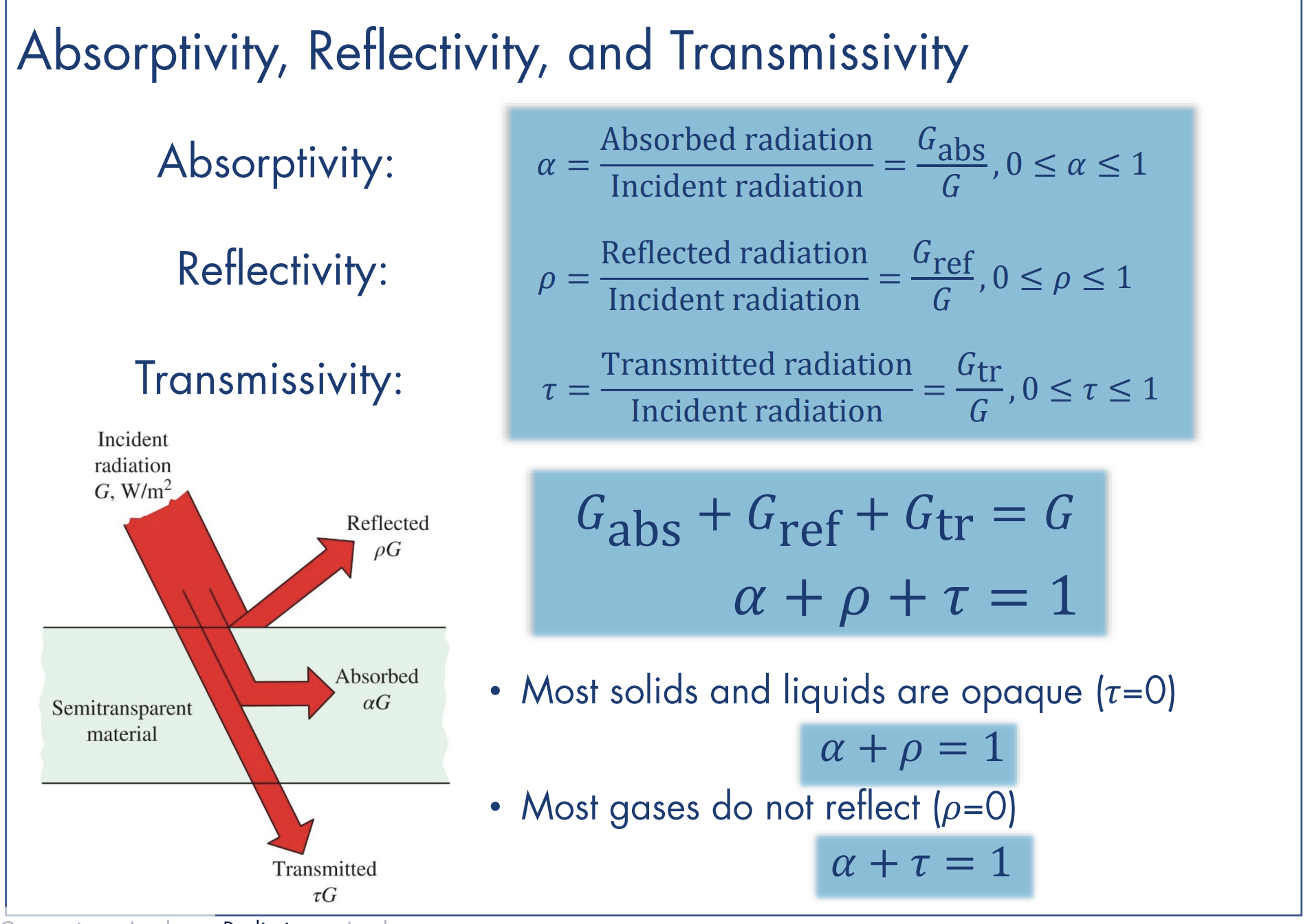

Absorptivity is related to reflectivity and transmissivity.

Kirchoff’s Law

In general, both $ϵ$ and $\alpha$ of a surface depend on the temperature and the wavelength of the radiation. Kirchoff’s law of radiation states that, for any surface in an isothermal enclosure, the emissivity and the absorptivity of a surface at a given temperature and wavelength are equal, $ϵ(\lambda ,T)=\alpha (\lambda ,T)$, for a body in thermal equilibrium.

Kirchoff’s Law is a simplification; we need to be proceed with caution when $T_s-T_{\text{surr}}>100\text{ K}$.

Net Heat Transfer

Net radiation heat transfer is the difference between the rates of radiation emitted by the surface and the radiation absorbed.

• If the rate of radiation absorption is greater than the rate of radiation emission, the surface is said to be gaining energy by radiation.
• Otherwise, the surface is said to be losing energy by radiation.
• Kirchoff’s Law applies for net radiation from a surface enclosed by surroundings.

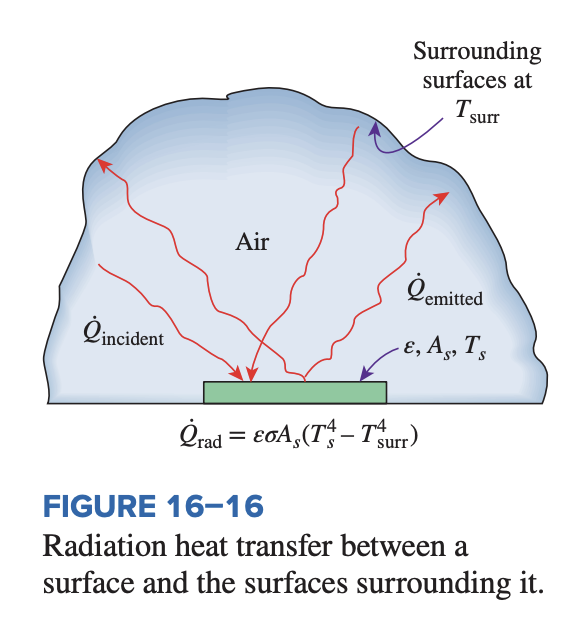

When a surface of emissivity $ϵ$ surface area $A_s$ at a thermodynamic temperature $T_s$ is completely enclosed by a much larger (or black) surface at thermodynamic temperature $T_{\text{surr}}$ separated by a gas (such as air) that does not intervene with radiation, the net rate of radiation heat transfer between these two surfaces is given by:

$$\begin{array}{rl}{\dot{Q}}_{\text{net}}^{\prime \prime }& =ϵ\sigma (T_s^4-T_{\text{surr}}^4)\\ {\dot{Q}}_{\text{net}}^{\prime \prime }& =h_{\text{rad}}(T_s-T_{\text{surr}})\end{array}$$

In this special case, the emissivity and the surface area of the surrounding surface do not have any effect on the net radiation heat transfer.
