Transformers for NLP

A typical NLP pipeline starts with a tokenizer that splits the text into words or word fragments. Then each of these tokens is mapped to a learned embedding, which are passed through a series of transformer layers.

Tokenization.

See Text Tokenization.

Embeddings

Each token in the vocabulary $\mathcal{V}$ is mapped to a unique word embedding, and the embeddings for the whole vocabulary are stored in the matrix ${\Omega }_c\in {\mathbb{R}}^{|\mathcal{V}|\times D}$.

To do this, the $N$ input tokens are first encoded in the matrix $T\in {\mathbb{R}}^{N\times |\mathcal{V}|}$, where the $n$-th row corresponds to the $n$-th token and is a $1\times \left|\mathcal{V}\right|$ one-hot vector. The input embeddings are computed as $X=T{\Omega }_c$, and ${\Omega }_c$ is learned like any other network parameter.

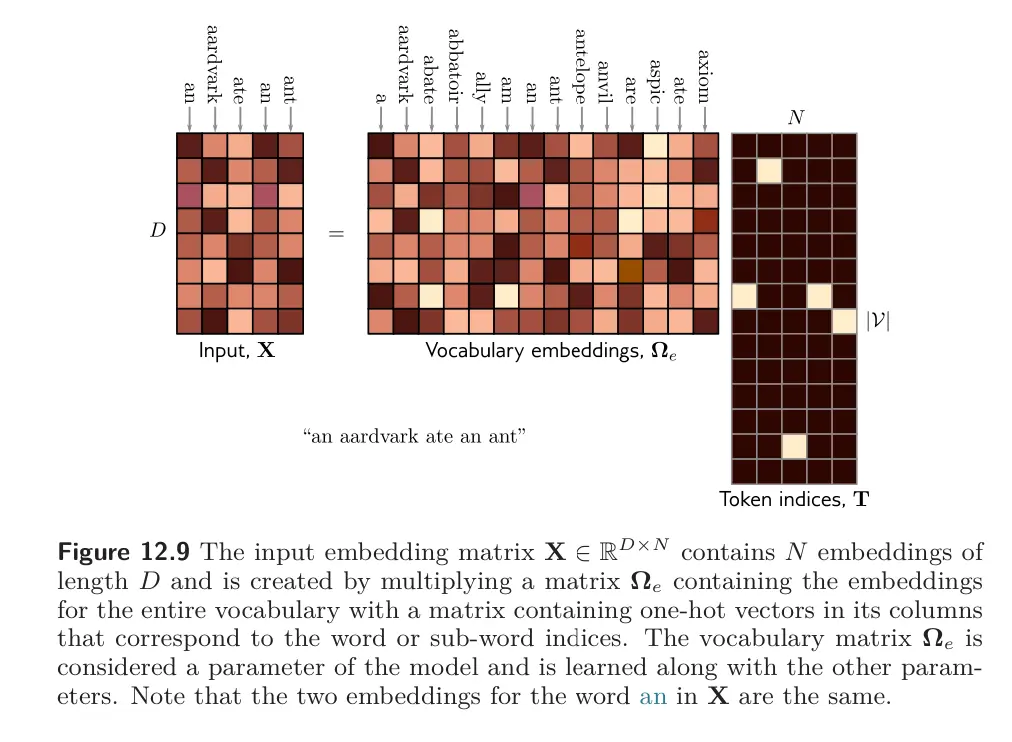

• Note that this diagram is using column vectors instead of row vectors so all the dimensions are flipped.

A typical embedding size is 1024, and a typical total vocabulary size $\left|\mathcal{V}\right|$ is 30,000. Thus, even before the main network, there are many parameters in ${\Omega }_c$ to learn.

Transformer model

Finally, the embedding matrix $X$ representing the text is passed through a series of $K$ transformer layers, called a transformer model.

There are three types of transformer models:

• An encoder transforms the text embeddings into a representation that can support a variety of tasks. An example of this is BERT.
• A decoder predicts the next token to continue the input text. An example of this is GPT-3.
• Encoder-decoder are used in sequence-to-sequence tasks, where one text string is converted into another (e.g., machine translation).
