Transformer Layer

Transformer layers consist of:

• A multi-head self-attention unit, which allows word representations to interact with each other
• A fully connected network $\text{mlp}[x_{\bullet }]$, which operates separately on each word

Both units are residual networks – their output is added back to the original input. In addition, it is typical to add a LayerNorm operation after both the self-attention and fully connected networks.

The complete transformer layer can be described by the following series of operations:

$$\begin{array}{rlr}X& \leftarrow X+\text{MhSA}[X]& \\ X& \leftarrow \text{LayerNorm}[X]& \\ x_n& \leftarrow x_n+\text{mlp}[x_n]& \forall n\in \{1,\dots ,N\}\\ X& \leftarrow \text{LayerNorm}[X]& \end{array}$$

where the row vectors $x_n$ are separately taken from the full data matrix $X$. In a real network, the data passes through a series of these transformer layers.

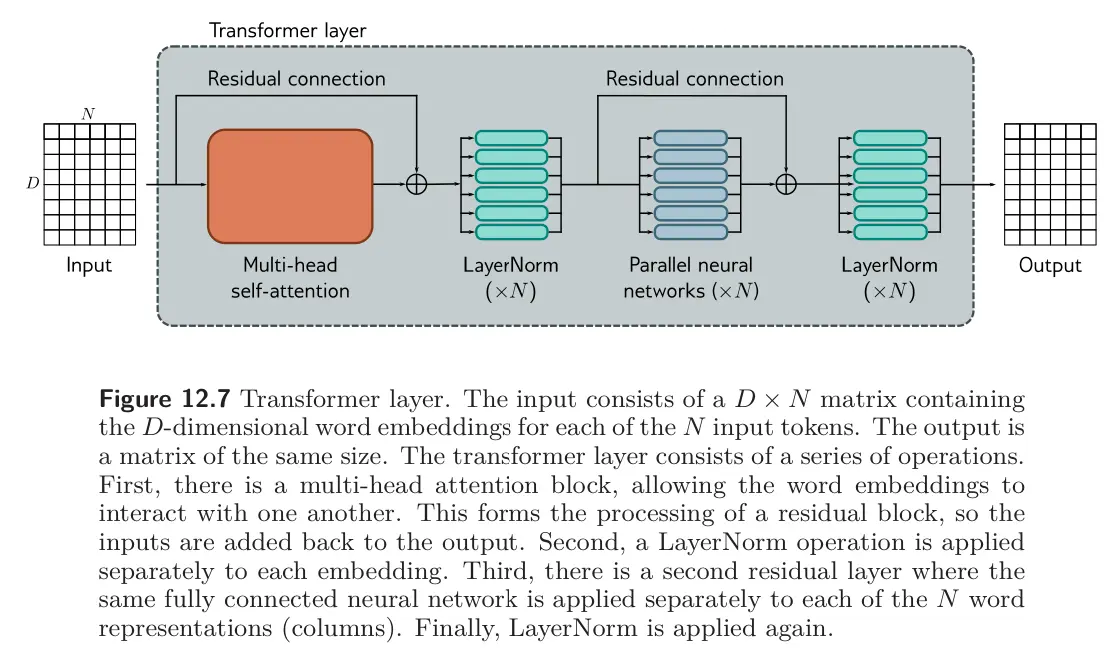

• Note that this image uses $D\times N$ input data (column vectors for each input) while it’s more standard to do $N\times D$ (row vectors).

dl Transformer layer operations::MhSA + residual → LayerNorm → MLP + residual → LayerNorm
