Stacks and queues are containers – abstract data types permit data storage and retrieval of items irrespective of actual content.
Stack
- LIFO (last-in, first-out)
- Use a pointer to keep track of the top of the stack
Operations
- Push: Insert item at the top of the stack.
- Set the value of the pointer to the item being inserted
- Increment pointer by 1
- Pop: Return (and remove item) at the top of the stack.
- Decrease pointer by 1
- Example: Towers of Hanoi

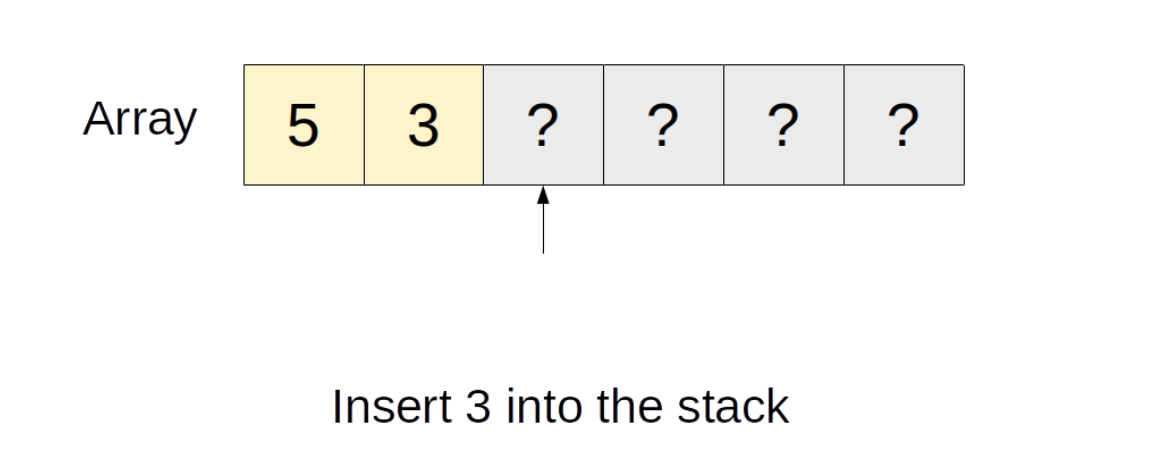

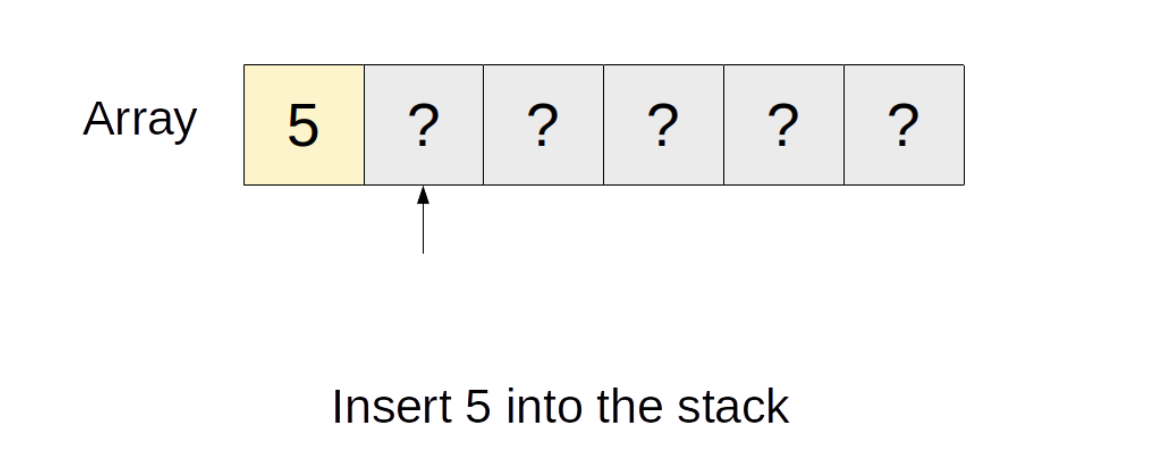

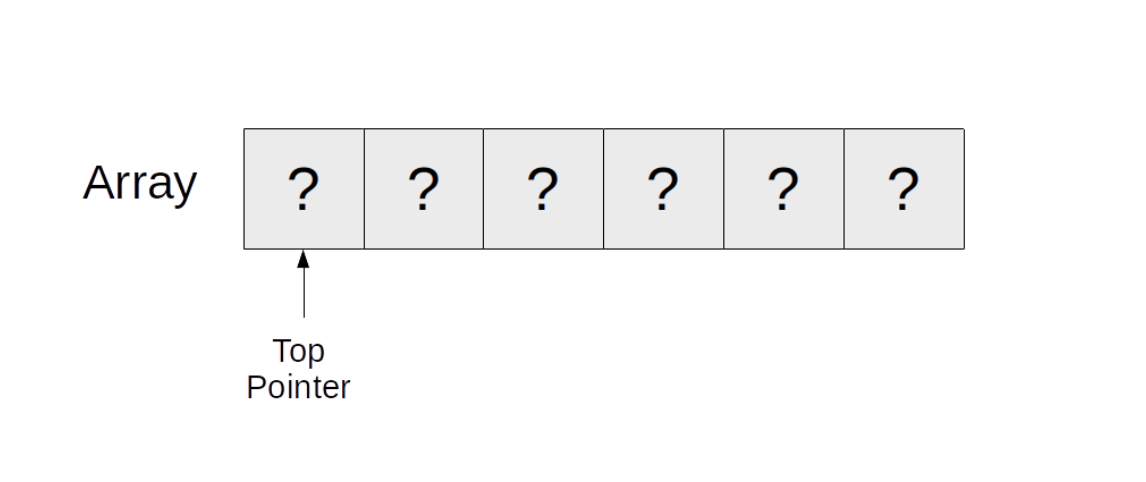

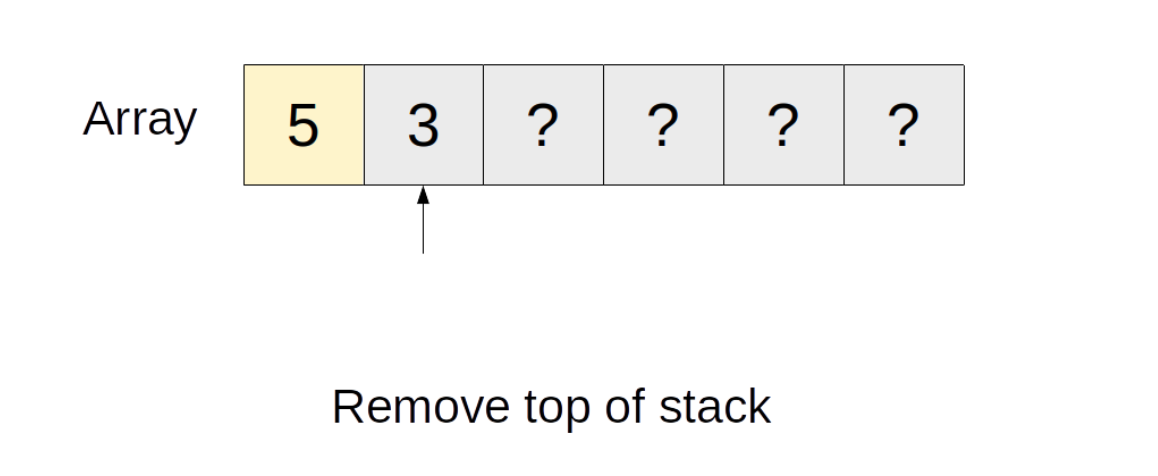

Stack Graphical Explanation
Queues
- FIFO (first-in, first-out).
- FIFO order minimizes the maximum time spent waiting, but the average time will be the same whether FIFO or LIFO is used.

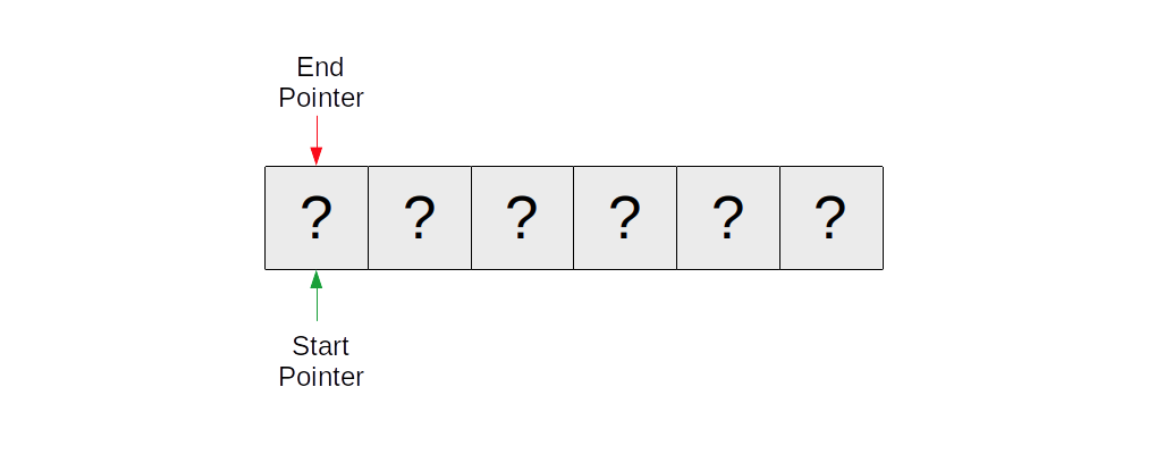

- Use two pointers to keep track of the start and end of the queue
Operations
- Enqueue: Insert item at the back of the queue.
- Set the entry at the end pointer to the value and increase the end pointer by one.
- Dequeue: Return and remove the from item of the queue
- Set increase the start pointer by one.
- Example: Drive-thru

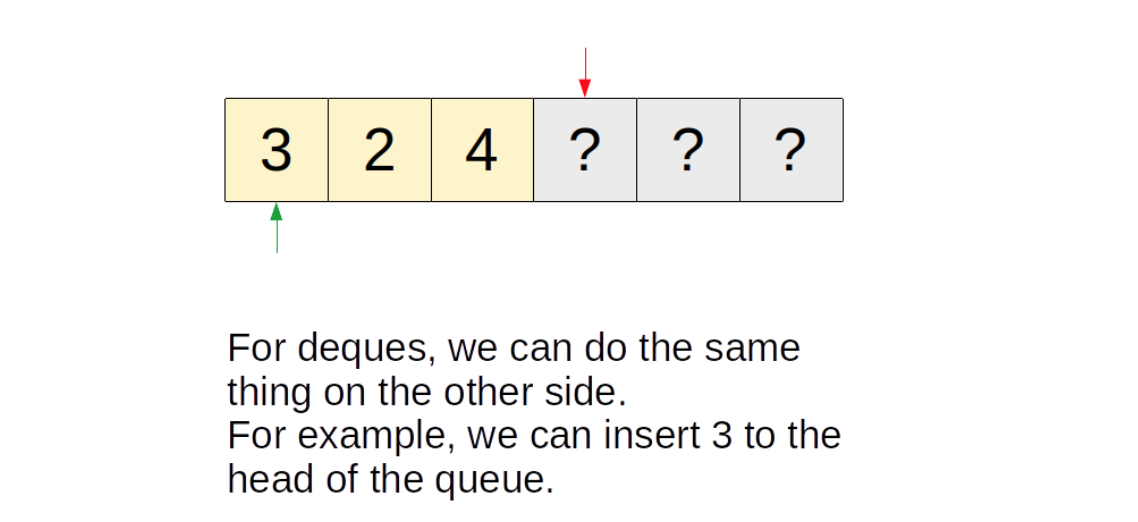

- Deque: Double-ended queue where inserting and removing items can be done from both ends

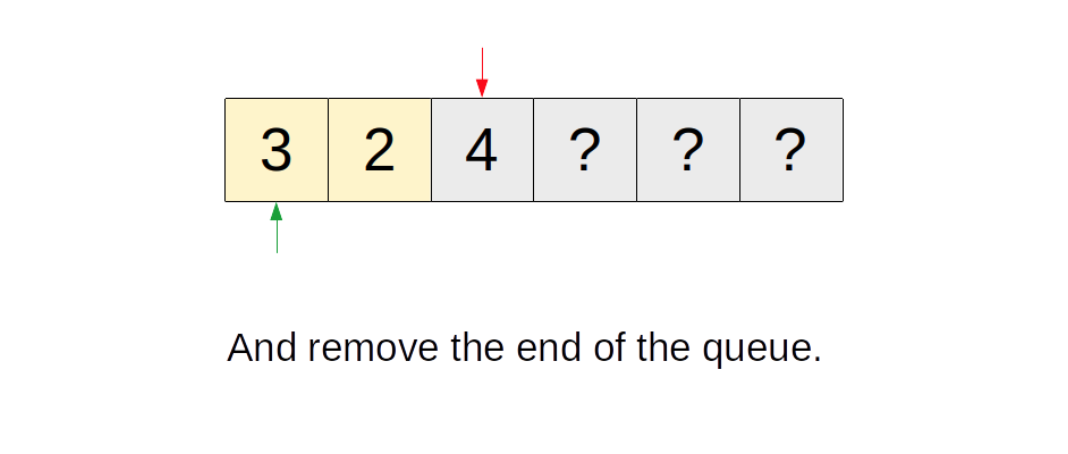

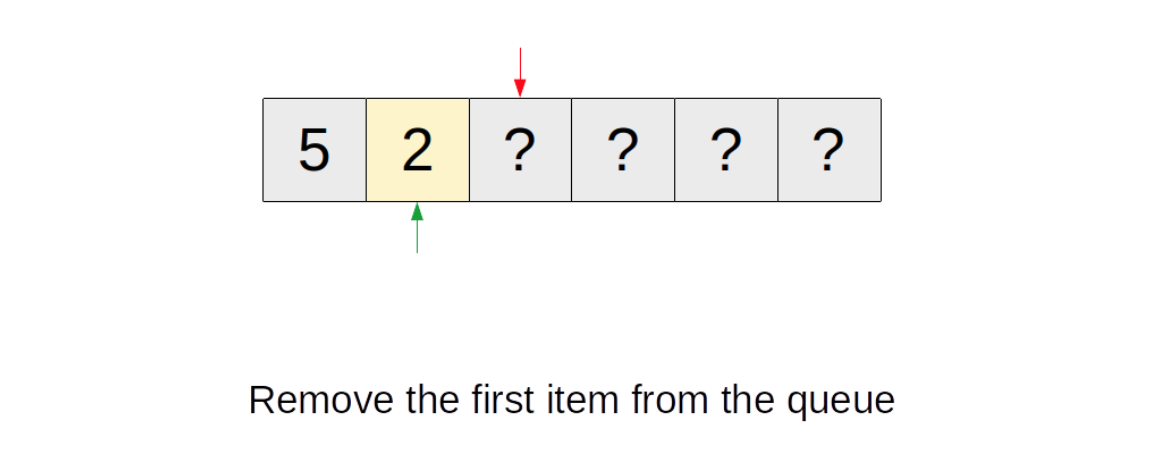

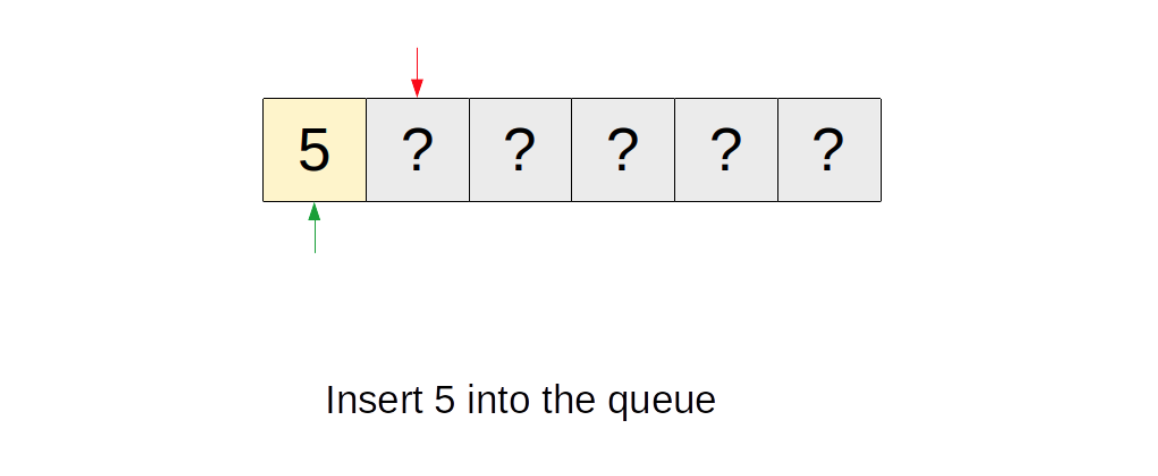

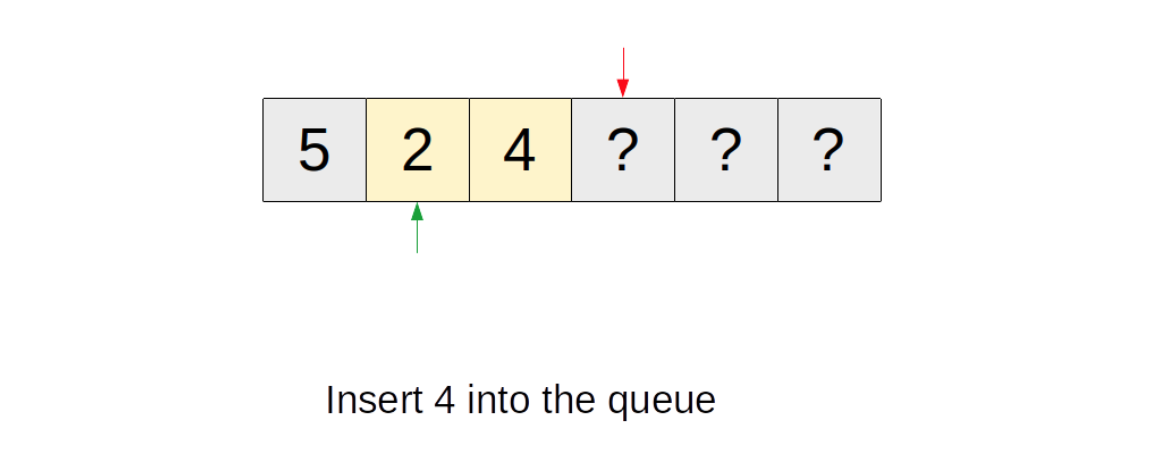

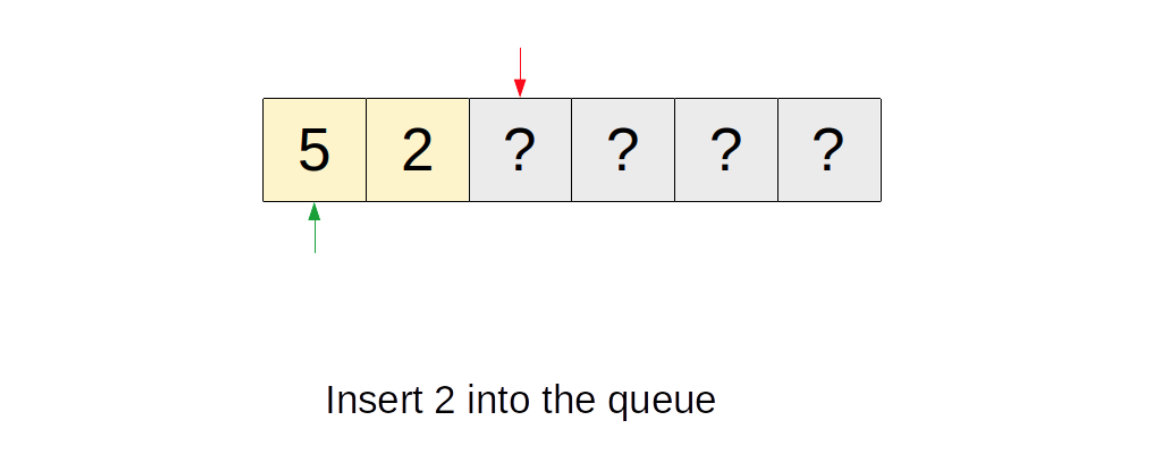

Queue Graphical Explanation
