Recall the 3D Cartesian Coordinate System:

3D Coordinate System

  • Description of 3D space – analogous to 2D
  • 3D space: , 2D space:

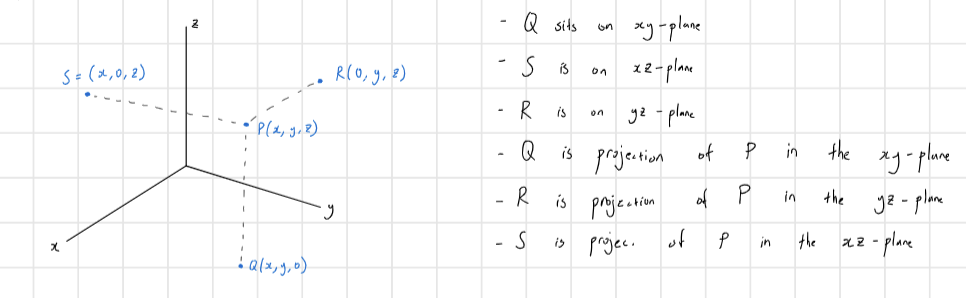

3d coordinates

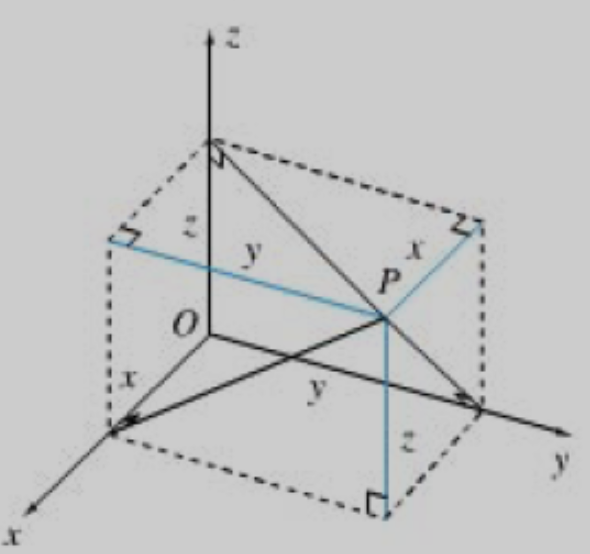

  • Distance between 2 points:
  • Equation for a sphere:

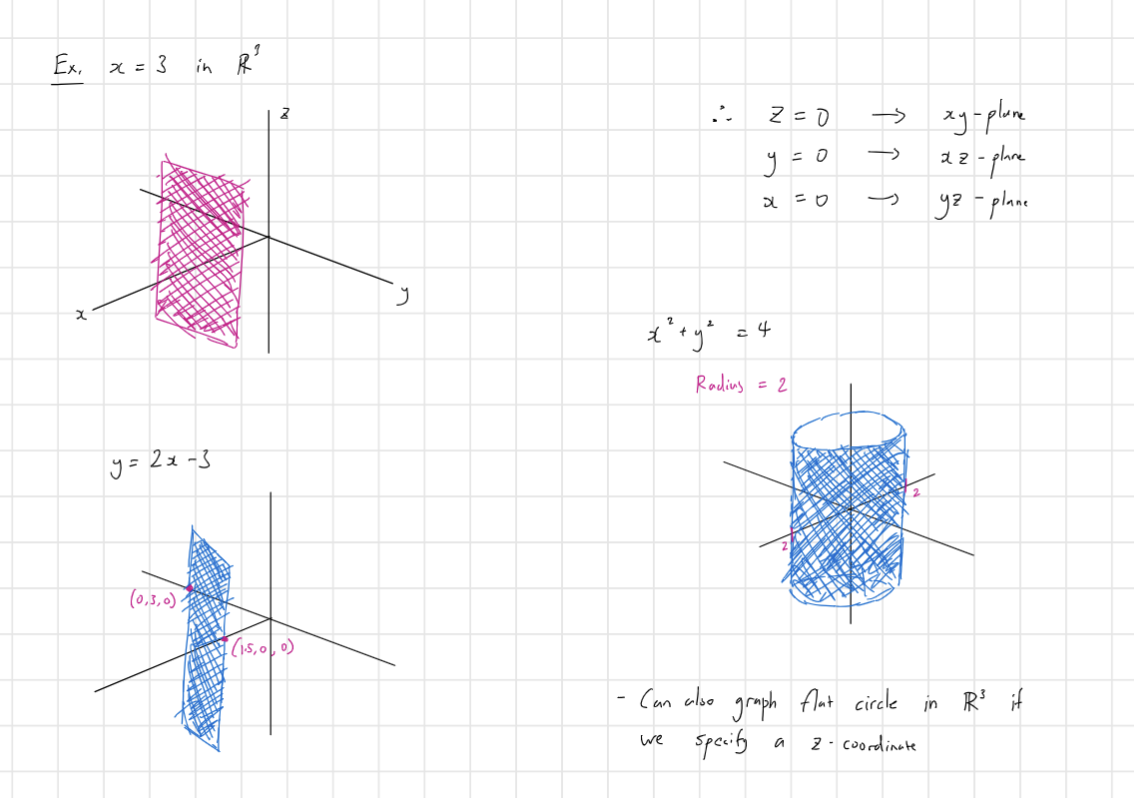

3d graphs

Link to original


We use right-handed coordinate systems:

Try to keep these axes in this orientation, or answers may come out negative.

Definition: Octants

We split 3D Cartesian space into 8 regions called octants.

  • Analogous to quadrants for 2D Cartesian space.

Octants are collections of points where have some given signs.

  • First octant is the region where are positive.
