LayerNorm

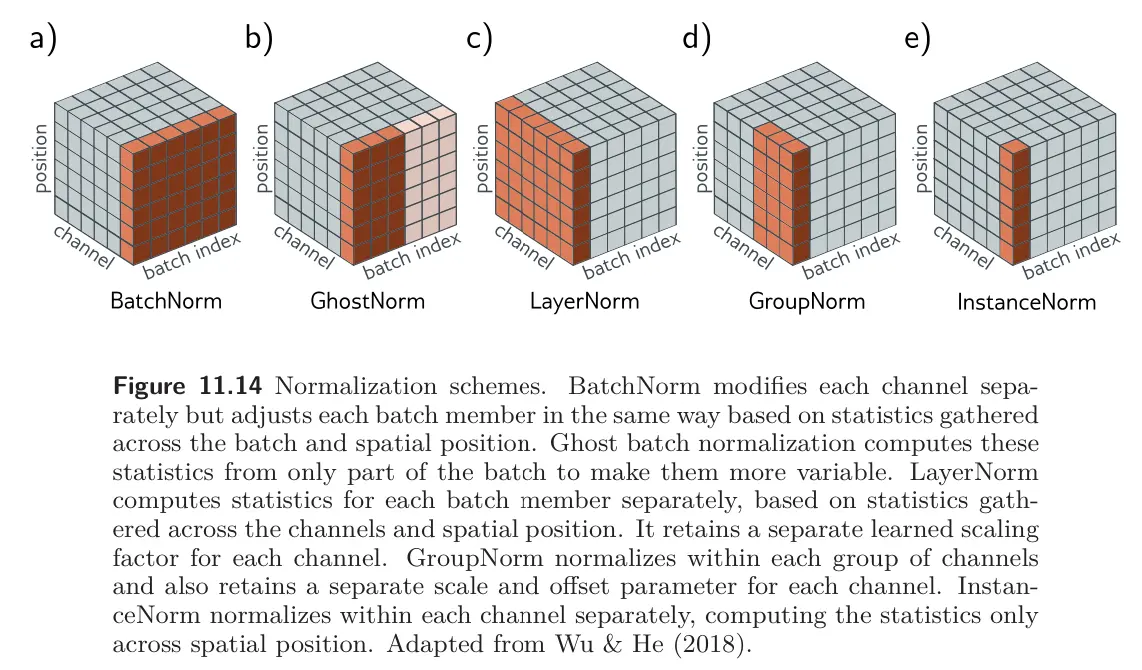

LayerNorm is similar to BatchNorm normalizes each individual sample using the mean and variance computed across its feature dimensions, rather than across the batch.

Suppose we have data where X.shape == (N,D)

In BatchNorm, we would do

mean = np.mean(X, axis=0, keepdims=True)   # (1, D)
std  = np.std(X, axis=0, keepdims=True)    # (1, D)
X_norm = (X - mean) / (std + eps)

# X =
# [[x11 x12 x13]
# [x21 x22 x23]
# [x31 x32 x33]]
#       ↑
#     normalize down each column

In LayerNorm, we would do:

mean = np.mean(X, axis=1, keepdims=True)   # (N, 1)
std  = np.std(X, axis=1, keepdims=True)    # (N, 1)
X_norm = (X - mean) / (std + eps)

# X =
# [[x11 x12 x13]  ← normalize across this row
# [x21 x22 x23]  ← normalize across this row
# [x31 x32 x33]] ← normalize across this row

In both cases, we would then do:

X = gamma * X + delta   # broadcast over N

where both gamma and delta have shape (1,D) that gets broadcast over N.

dl LayerNorm::Normalize samples across feature dimension instead of batch dimension.
