Neural Network Layer

• A layer is a set of units that are not connected to each other.
• A layer is called fully connected if every neuron in the layer shares the same inputs.
• A layer has input $x\in {\mathbb{R}}^m$ and output (also known as activation) $a\in {\mathbb{R}}^n$.

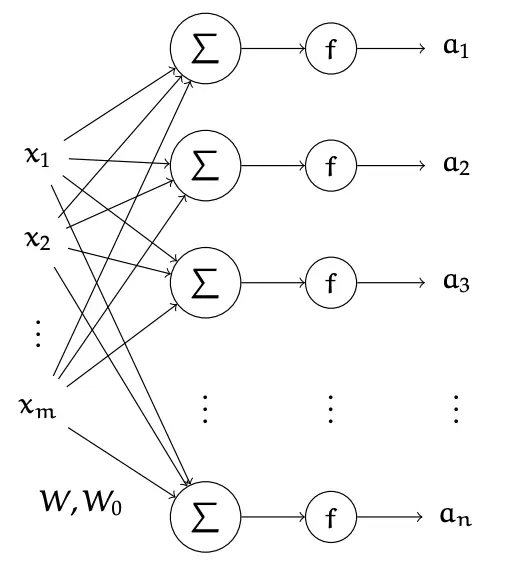

Fully connected layer:

Since each unit (neuron) has a vector of weights and a single offset, we can think of the weights of the whole layer as a matrix, $W$, and the collection of all the offsets as a vector $W_0$. If we have $m$ inputs, $n$ units, and $n$ outputs, then:

• $W$ is a $m\times n$ matrix
• $W_0$ is a $n\times 1$ column vector
• $X$, the input, is an $m\times 1$ column vector
• $Z=W^{T}X+W_0$, the pre-activation value, is an $n\times 1$ column vector
• $A$, the activation, is an $n\times 1$ column vector, and is applied element-wise to $Z$. and the output vector is:

$$A=f(Z)=f(W^{T}X+W_0)$$

Single-layer networks allow us to make linear hypotheses, as we have seen with linear classifiers and regression.
