Blend Crossover

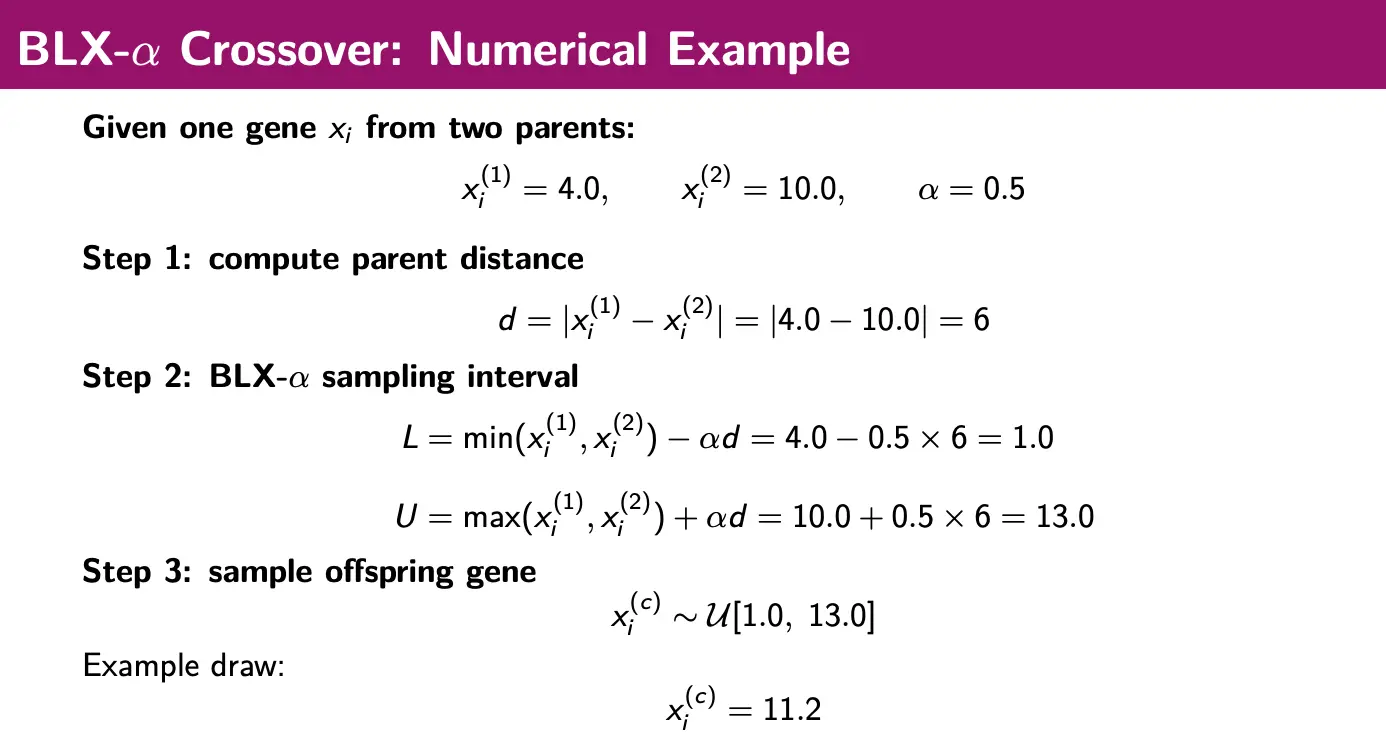

BLX-$\alpha$ crossover constructs a uniform sampling interval from the parents based on the distance between them and a parameter $\alpha$.

We first compute a parent distance:

$$d=\left|x_i^{(1)}-x_i^{(2)}\right|$$

Then the lower and upper ends of the sampling interval are constructed by:

$$\begin{array}{rl}L& =\min (x_i^{(1)},x_i^{(2)})-\alpha d\\ U& =\max (x_i^{(1)},x_i^{(2)})+\alpha d\end{array}$$

We then sample from this range:

$$x_i^{(c)}\sim \mathcal{U}[L,U]$$

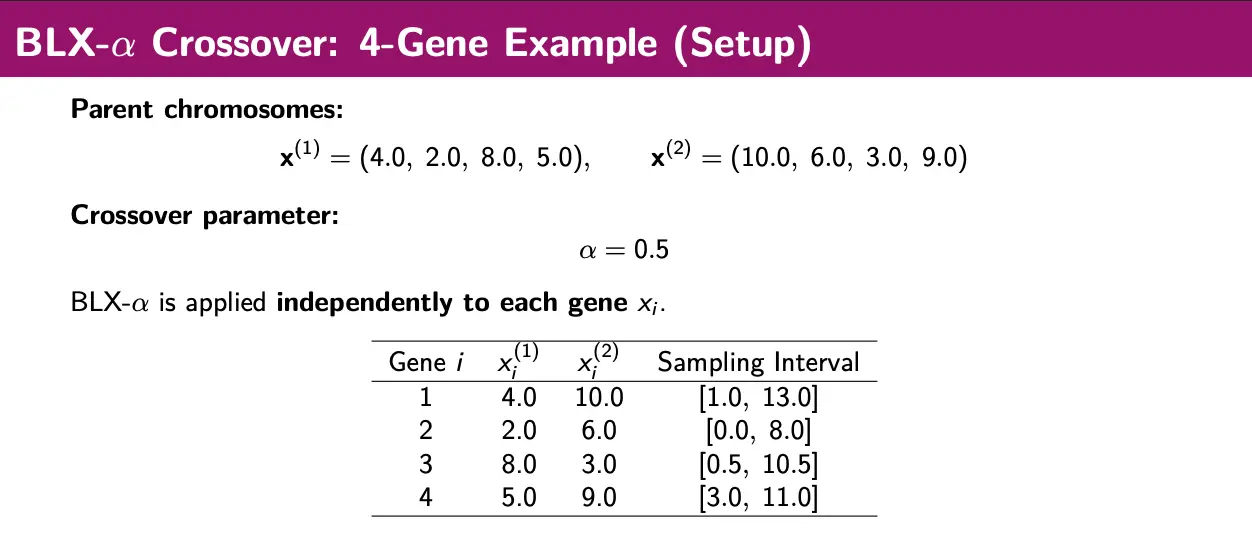

Note that this is done with individual genes. Below is a 4-gene example:
