ACO for Cell Assignment

The cell assignment problem in PCS (personal communication services) networks is difficult.

Each cell has an antenna used to communicate with subscribers, occurring over pre-assigned radio frequencies. Groups of cells are connected to a switch, which routes traffic to satellite networks. We need to assign frequency channels to cells to minimize interference and maximize channel utilization. Close cells should not have close frequency ranges.

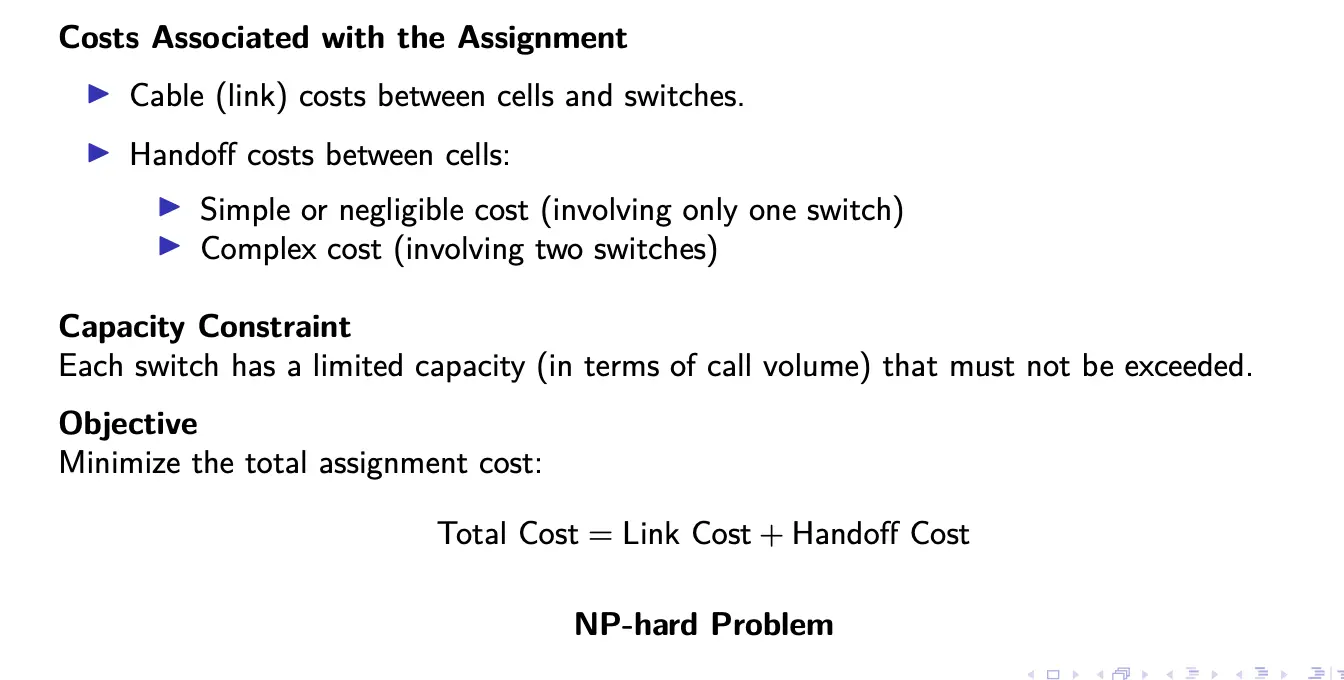

Given $n$ cells to be assigned to $m$ switches, where each switch $k$ has capacity $M_k$, we need to find an assignment that minimizes:

• Link cost (cell-switch connection)

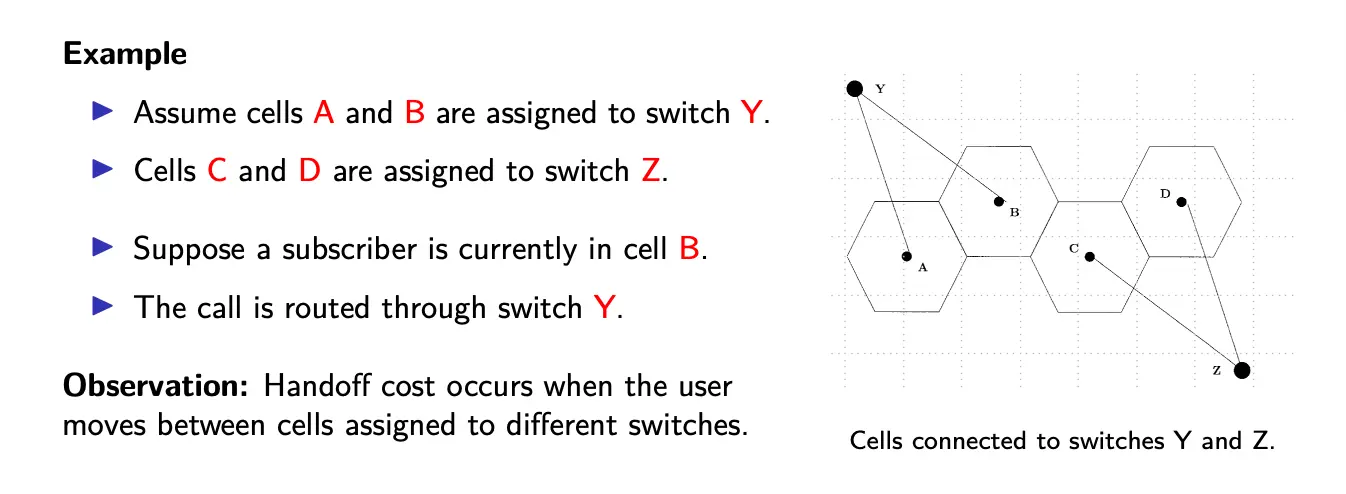

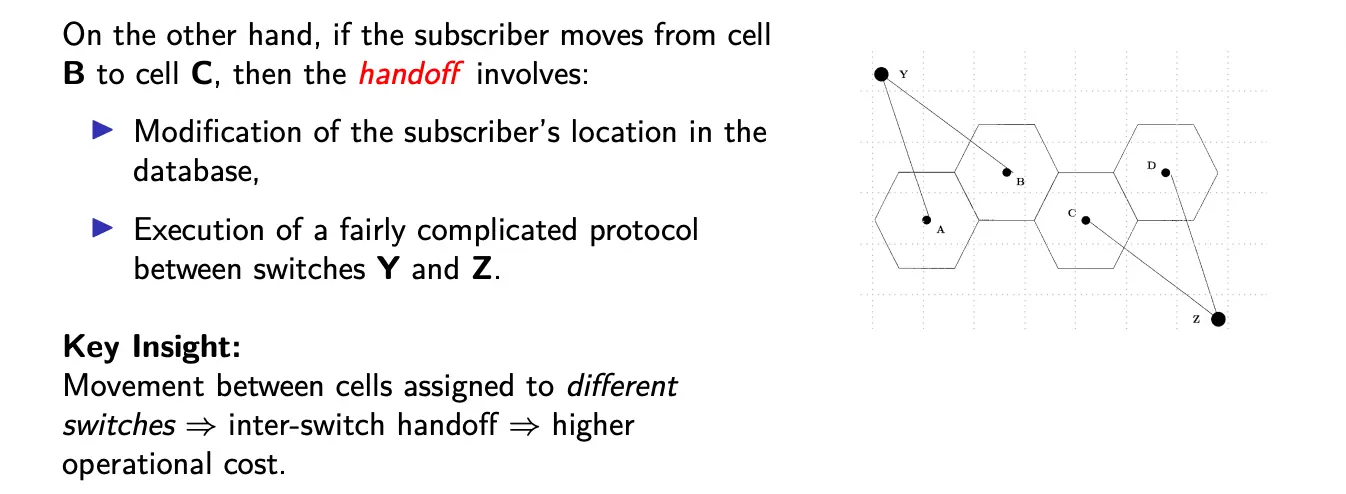

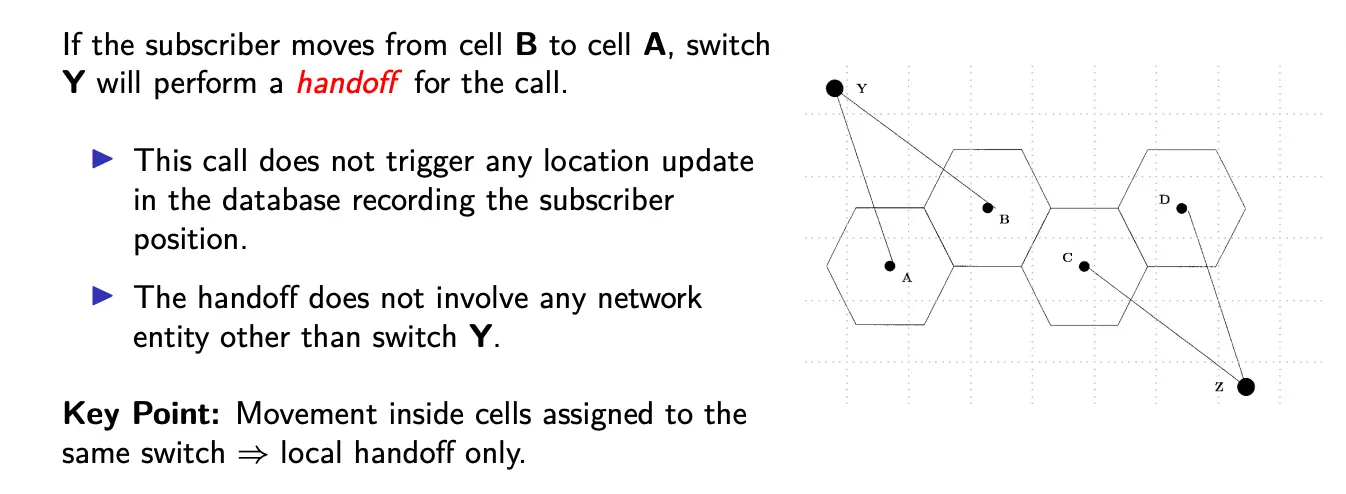

• Handoff cost (mobility between cells)

Formulated as an ACO problem, each ant makes 2 decisions:

• Choose the next cell to be assigned
• Choose the switch to assign the selected cell to.

Then, we form a pheromone trail ${\tau }_{ij}$ associated with every possible assignment of cell $i$ to switch $j$.

Other parameters, we need to consider: max number of iterations, number of ants, transition rule, pheromone update rule.

Mathematical Formulation

From the above, we can formulate this into a mathematical problem.

Let $c_{ik}$ be the cost of the link between cell $i$ and switch $k$, with $i=1,\dots ,n$ and $k=1,\dots ,m$.

Let:

$$x_{ik}=\{\begin{array}{ll}1& \text{if cell }i\text{ is assigned to switch }k\\ 0& \text{otherwise}\end{array}$$

Let

$$y_{ij}=\{\begin{array}{ll}1& \text{if cells }i\text{ and }k\text{ are assigned to the same switch}\\ 0& \text{otherwise}\end{array}$$

Let $h_{ij}$ be the handoff cost between cells $i$ and $j$ when they are assigned to different switches.

Let $d_i$ bet he call demand (number of calls) for cell $i$.

The objective is:

$$\text{Minimize}f=\sum _{i=1}^n\sum _{k=1}^m{c}_{ik}{x}_{ik}+\sum _{i=1}^n\sum _{j=1}^n{h}_{ij}(1-y_{ij})$$

Subject to:

$$\sum _{i=1}^n{d}_i{x}_{ik}\le M_k,k=1,\dots ,m$$

ACO Algorithm

Initialization

• Select maximum number of iterations: ${\text{it}}_{\text{max}}$
• Select number of ants: ${\text{ant}}_{\text{max}}$

Main Loop

• While iteration $<{\text{it}}_{\text{max}}$:
  • For each ant ($\text{ant}<{\text{ant}}_{\text{max}}$)
    • Initialize ant parameters (pheromone, memory, etc.)
    • While number of assigned cells $<n$:
      • Select next cell using transition rule
      • Check capacity constraint of selected switch
      • Update local problem data (capacity, cost, etc.)
    • Evaluate solution using objective function.
  • Update pheromone trail (deposit + evaporate)
  • Retain best solution among all ants
  • Optionally reinforce pheromone based on global best

Transition Rules

Let $T$ be the set of switches not yet assigned. The transition probability is:

$$P_{ij}=\{\begin{array}{ll}\frac{{\tau }_{ij}^{\alpha }}{{\sum }_{l\in T}{\tau }_{il}^{\alpha }}& \text{ if }j\in T,\\ 0& \text{otherwise}\end{array}$$

This is a simple selection ratio based purely on pheromone, with no heuristic information, encouraging learned assignments.

If we want to add heuristic information:

$$P_{ij}=\{\begin{array}{ll}\frac{[{\tau }_{ij}{]}^{\alpha }[{\eta }_{ij}{]}^{\beta }}{{\sum }_{l\in T}[{\tau }_{ij}{]}^{\alpha }[{\eta }_{ij}{]}^{\beta }}& \text{ if }j\in T,\\ 0& \text{otherwise}\end{array}$$

We can use heuristic information to reflect utilization or assignment cost, or bias ants toward promising switches. For example:

$${\eta }_{ij}=\frac{1}{\text{cost of assigning cell }i\text{ to switch }j}$$

Pheromone Update and Evaporation

Standard rule:

$${\tau }_{ij}=(1-\rho ){\tau }_{ij}+\Delta {\tau }_{ij}$$

Alternative form:

$${\tau }_{ij}=(1-\rho ){\tau }_{ij}+\Delta {\tau }_{ij}$$

$\Delta {\tau }_{ij}$ can be density-based, quantity-based (local cost), or online/delayed (solution quality).
