8-Queens Heuristic Example

8-Queens Problem: Place eight queens on an 8x8 chessboard so that no two queens attack each other – that is, no two share the same row, column, or diagonal.

We can define a heuristic for the number of attacking queen pairs:

$$h_1(n)=\text{number of attacking queen pairs}$$

• We can interpret $h_1=0$ as a valid solution.
• Note that we are counting the number of pairs, not the diagonals

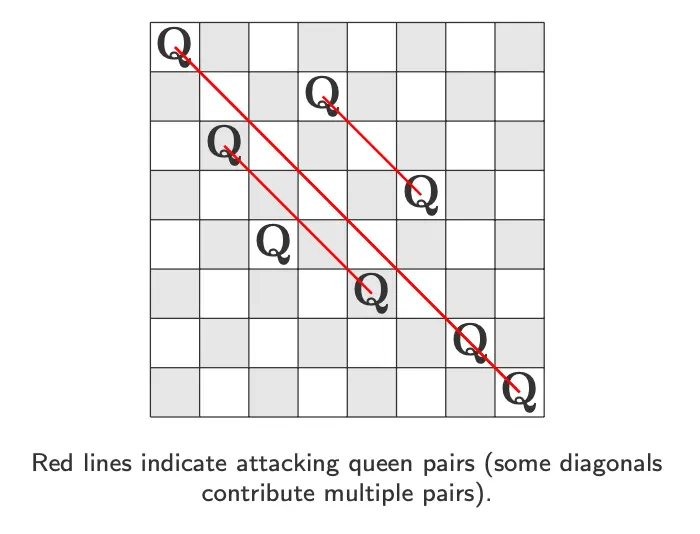

For the board below, there are 3 queens on the main diagonal, which creates $\left(\genfrac{}{}{0ex}{}{3}{2}\right)=3$ conflicts. There are two additional conflicts. Thus, the total $h_1(n)=5$.

We could define a second heuristic as:

$$h_2(n)=\text{\# of queens participating in }\ge 1\text{ conflict}$$

• Once the queen at column 2 is conflict free

For the board above:

• Conflicts exist among queens in columns: $\{0,1,3,4,5,6,7\}$
• Only the queen at column 2 is conflict-free.
• Therefore, $h_2(n)=7$
