Radar Intro

Radars operate by emitting and receiving electromagnetic pulses, following principles similar to sound wave reflection.

  • Transmitter generates radio frequency pulses with high power
  • Pulses are transmitted through medium (air) through antenna
  • When object is reached, pulses echo from the transmission of radio frequency energy to this object
  • A small portion of the reflected energy returns to the radar through the antenna and is directed to the receiver.
  • Finally, the receiver sends the energy to the signal processor to determine the direction, distance, and even speed of the object identified

Strengths:

  • Long-range: hundreds of meters
  • Robustness to weather and lighting conditions
  • Can determine the position of obstacles invisible to the naked eye - or even to other sensors like cameras - due to distance, darkness, or weather
  • Velocity measurement: Doppler effect can be used to measure relative velocity of objects
  • Much cheaper than lidar

Weaknesses:

  • Low resolution; hard to distinguish between closely-spaced objects and small objects
  • Hard to determine shape of detected objects
  • Radar signals can reflect off multiple surfaces before returning to the sensor, leading to multi-path interference

Camera-Radar Fusion

Why fuse?

  • Radar doesn’t allow for delineating shapes, but is robust to conditions.
    • Radar provides data in amplitudes, ranges, and Doppler spectrum
  • Cameras provide rich semantic data

How to fuse?

  • Point-wise addition (or average)
  • Concatenation of feature maps
  • Ensembles and MoE

When to fuse?

  • Neural networks represent and process features in a hierarchical manner throughout their different levels of layers.
  • Initial layers process coarser representation of the input, thus having more detailed spatial information.
  • Move further in architecture → feature maps lose spatial detail to gain semantic information
  • In last layers, feature maps completely encapsulate semantics, but are limited in terms of spatial information.

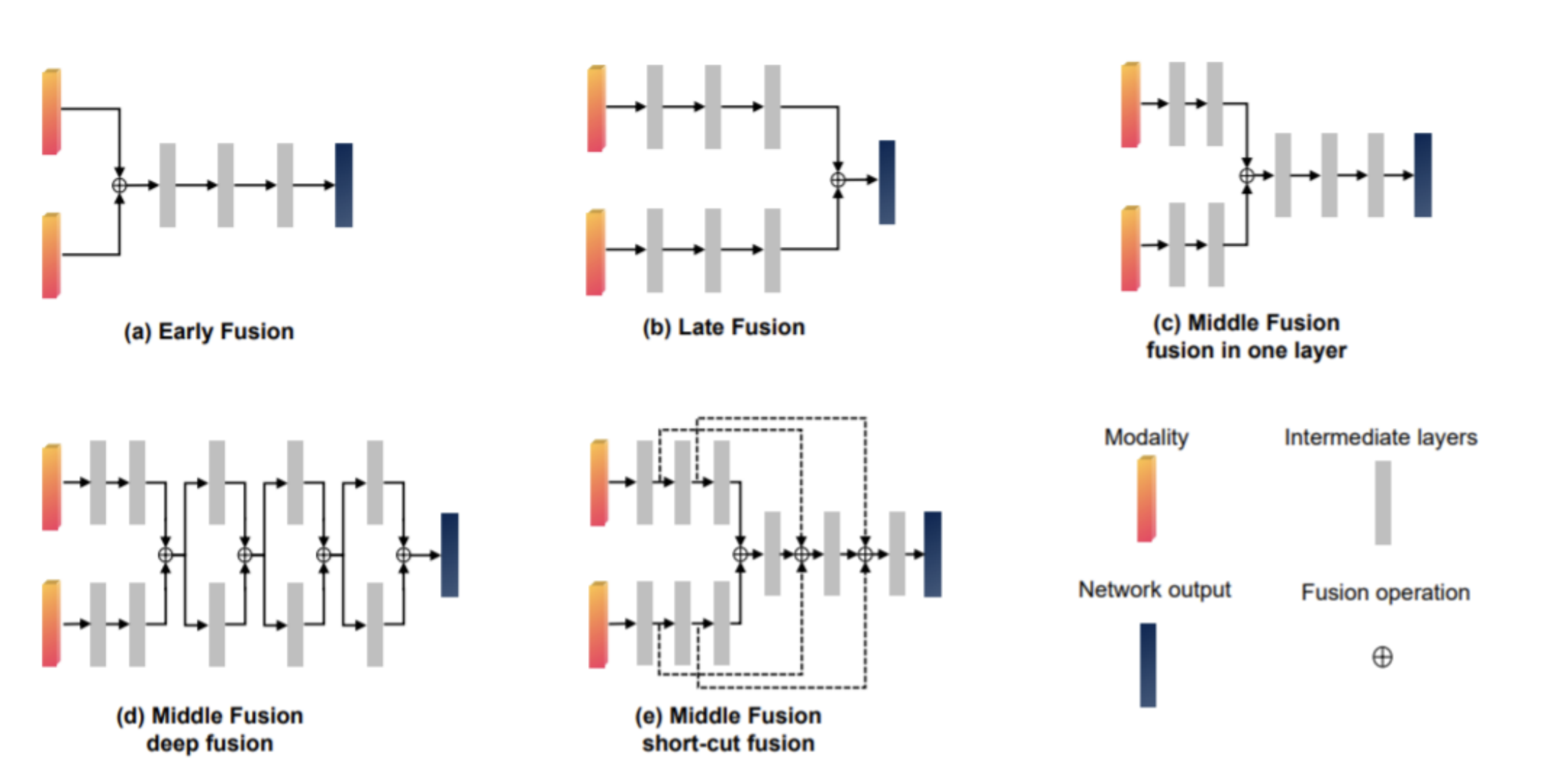

Early Fusion

  • Fuse input data or fuse features from the initial layers of a network
  • Full exploration of raw data
  • Low computation cost (network jointly processes the fused sensing modalities, so you don’t need 2 networks)
  • Sensitiveness to spatial-temporal misalignment due to calibration errors

Middle Fusion

  • Feature-level fusion
  • Fuse features from intermediate layers of the network
    • One-layer fusion, deep fusion, sort-cut fusion
  • Good balance between preserving spatial information and taking advantage of learned features
  • Drawback: Hard to find optimal fusion scheme for each particular network architecture

Late Fusion

  • Decision-level fusion
  • Occurs in late step of networking processing, close to output
  • Combines the outputs of domain-specific networks (experts) for the different sensing modalities.
  • Main advantages relies on model flexibility, given that when a new sensing modality is introduced, only its expert network must be retrained.
  • Main drawbacks are the high costs in terms of computation and memory, as well as the discarding of possibly important features from intermediate layers.
