Minimax Tic-Tac-Toe Example

Open Lines Heuristic

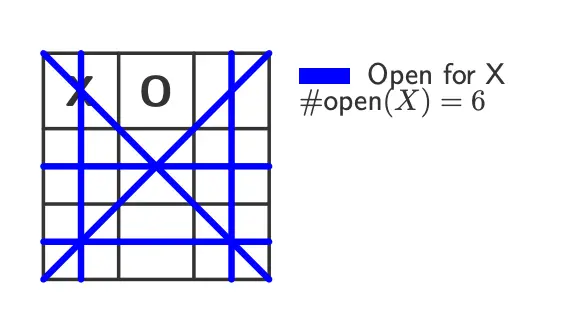

Define an open line for player $P$ as a row/column/diagonal with no opponent mark. We use the heuristic:

$$e(p)=\#\text{open}(X)-\#\text{open}(O)$$

Thus, for this board, we would have $e(p)=6-5=1$.

Evaluation Function

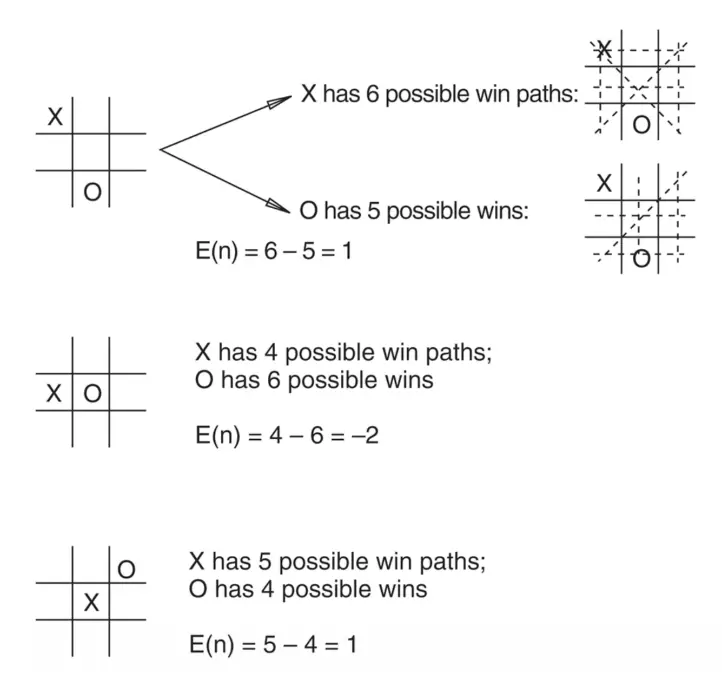

We can adapt the above heuristic to become $E(n)=M(n)-O(n)$, where

• $M(n)$ is the total number of my (MAX) possible winning lines
• $O(n)$ is the total number of opponent’s (MIN) possible winning lines
• $E(n)$ is the total evaluation for state $n$

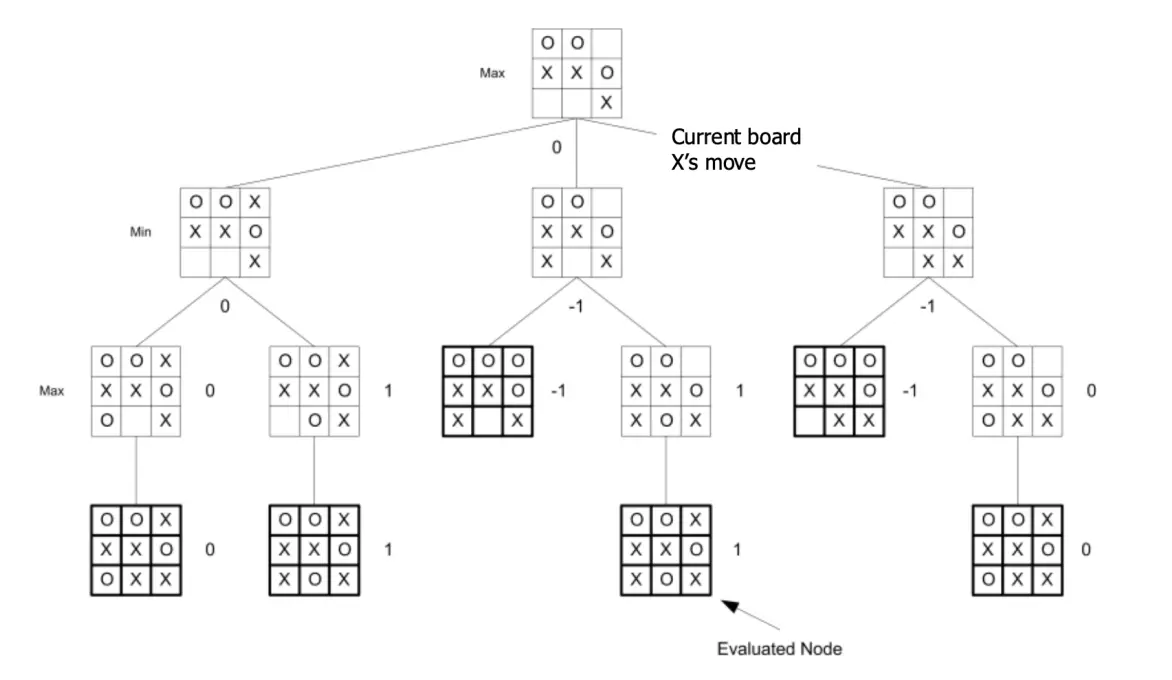

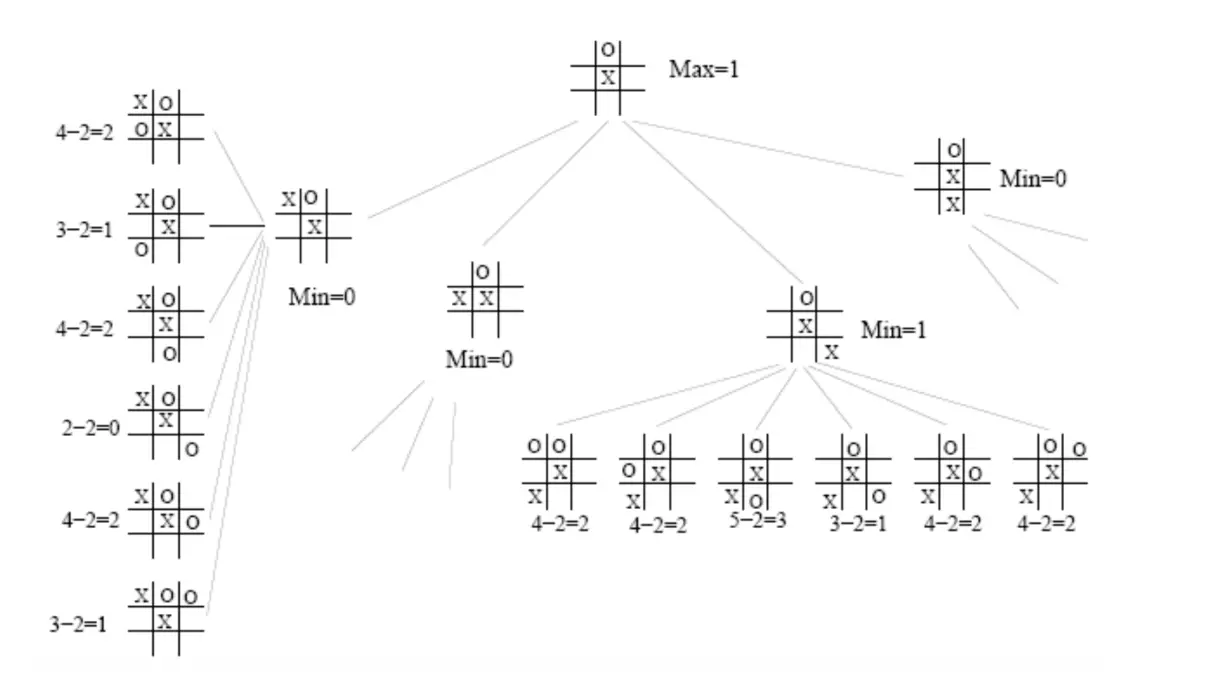

Now, we use Minimax to solve the problem:

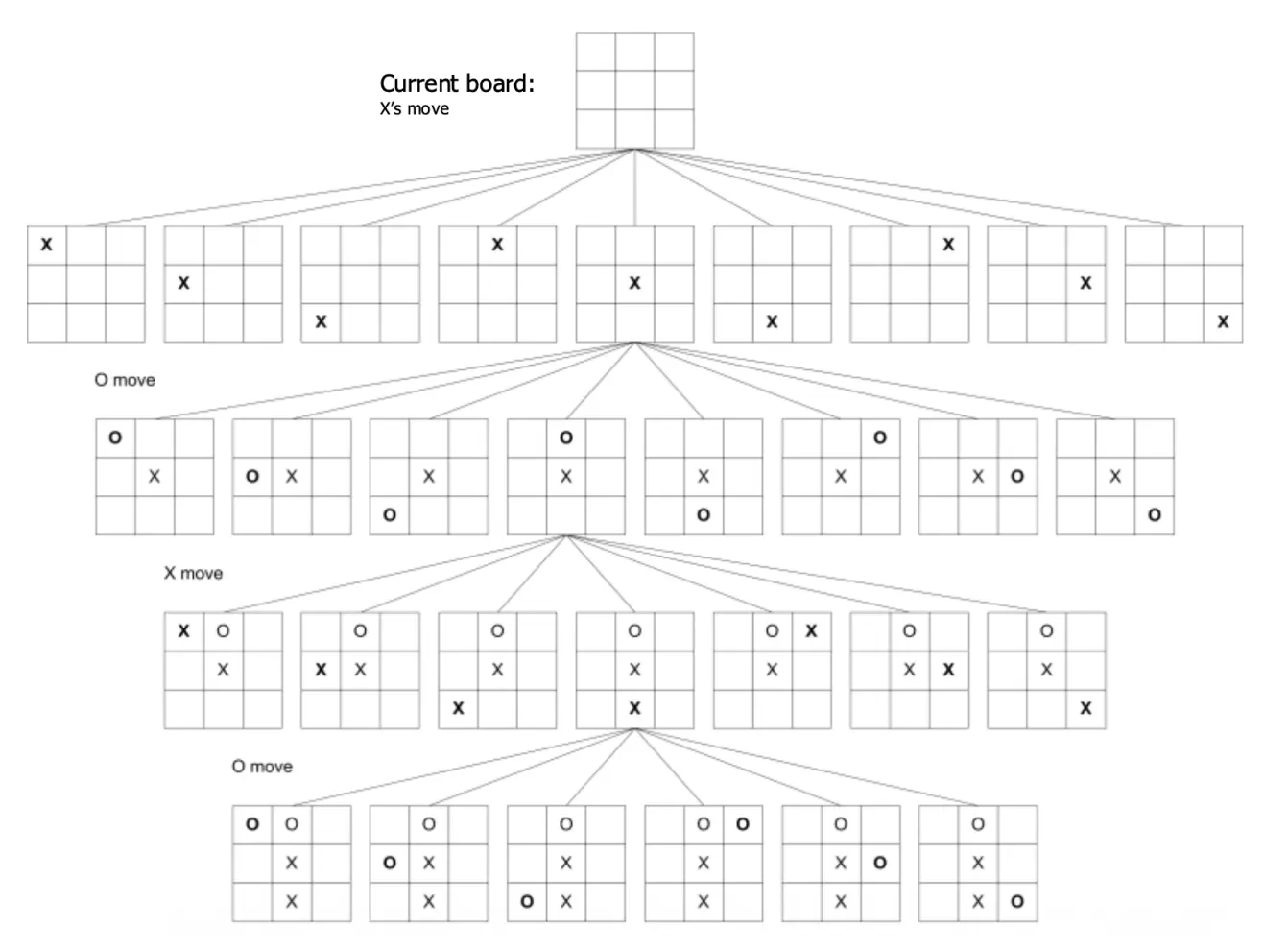

• Generate the game tree
• Apply the utility function to each terminal state to get its value
• Use these values to determine the utility of nodes one level higher up int he search tree.

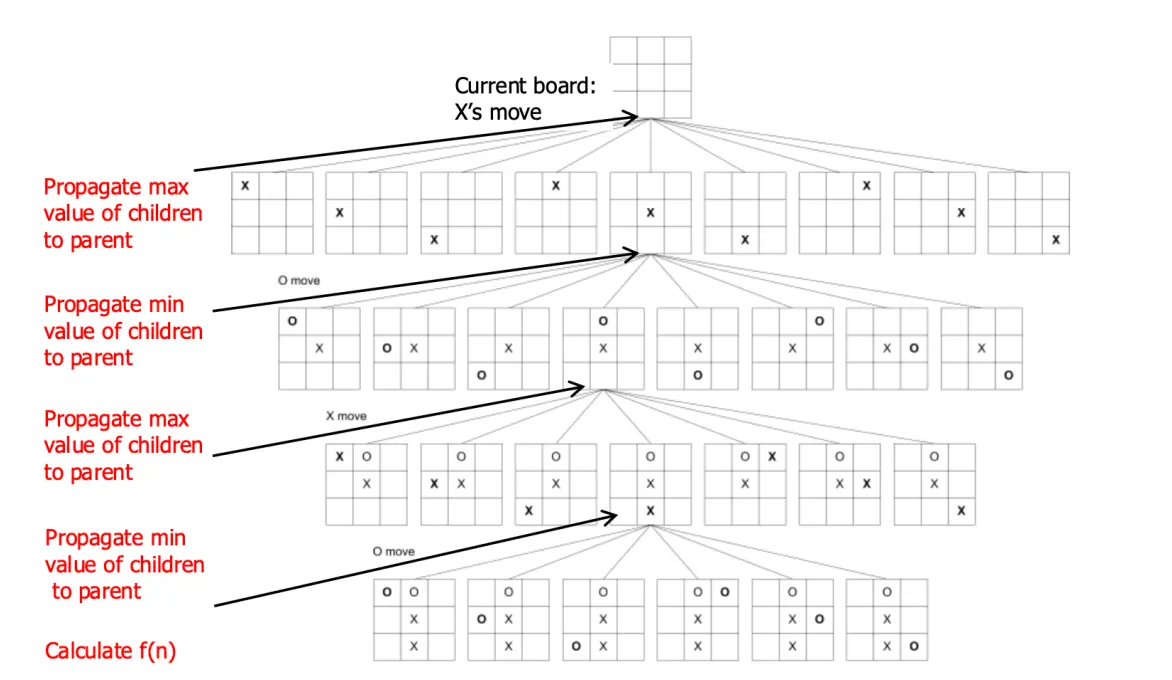

  • From bottom to top:
  • For a MAX level, select the maximum level of its successors
  • For a MIN level, select the minimum value of its successors

Decision rule: From the root node, select the move which leads to the highest value.
