Drag Force and Diffusion Coefficient of Particles

To understand the movement of microscopic particles suspended in a fluid (liquid or gas), where their random, jittery motion is influenced by collisions with molecules of the surrounding fluid, we need to understand Brownian motion – the random movement of particles resulting from collisions with fluid molecules.

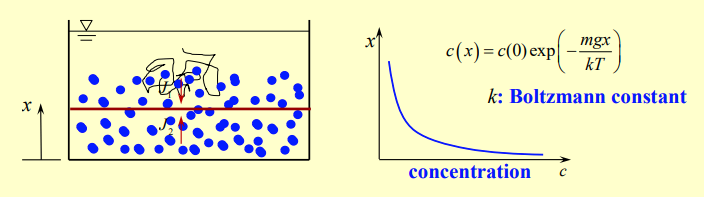

• The blue dots represent molecules of the fluid
• The larger object undergoing random motion is the particle influenced by countless molecular collisions.
• This movement leads to a net displacement over time, creating a diffusive effect

The concentration of particles as a function of height $x$ is represented as

$$c(x)=c(0)\exp \left(-\frac{mgx}{kT}\right)$$

where $k$ is the Boltzmann constant.The expression shows an exponential decay in concentration with height. This reflects the fact that gravity pulls the particles downward, causing fewer to be present at higher elevations.The Boltzmann factor $\exp (-\frac{mgx}{kT})$ represents the thermal distribution of particle energy versus gravitational potential energy.

Fluxes of Particles

Sedimentation Flux

Particles are pulled down by gravity, creating a flux:

$$J_1=Vc(x)=\frac{F_D}{6\pi \mu R}c(x)$$

where $V$ is the terminal velocity of te particle. This expression represents the downward drift of particles due to gravity.

Diffusion Flux

There is also a diffusion flux as particles move from regions of high concentration to low concentration:

$$J_2=-D\frac{\partial c}{\partial x}=D\frac{mg}{kT}c(x)$$

$D$ is the diffusion coefficient. This is the upward flux resulting from molecular diffusion counteracting the gravitational pull

Steady-State Condition

At steady-state, the downward sedimentation flux $J_1$ balances the upward diffusion flux $J_2$ such that

$$J_1=J_2$$

This results in:

$$\begin{array}{rl}\frac{F_D}{6\pi \mu R}c(x)& =D\frac{mg}{kT}c(x)\\ \frac{mg}{6\pi \mu R}& =D\frac{mg}{kT}\\ D& =\frac{kT}{6\pi \mu R}\end{array}$$

This is the Stokes-Einstein equation.
